Two buyers can order the dumper for the same nominal job and receive different machines, because the ground and the access decide more than the workload does. The sections below explain which questions separate the two cases.
Specifying strong traction 4WD transport vehicle with hydraulic tipping body against the job list
The specification should be written from the job backwards. Listing the loads, the ground and the hours first, then matching the unit in daily use to that list, avoids buying capacity the work never uses and avoids discovering a shortfall in the first week. A written duty list is the simplest part of the purchase. It takes an hour to note the material, the distance, the gradient and the hours per week, and it is what turns this class of machine enquiry into a machine that fits.
Handover and documentation for strong traction 4WD transport vehicle with hydraulic tipping body
Handover should include the documents as well as the keys. Parts list, service schedule and the operator notes for a machine of this size are what the workshop needs in month six, and they are much harder to obtain later.
Storage and downtime care for strong traction 4WD transport vehicle with hydraulic tipping body
Before-storage preparation prevents most return-to-work faults. Draining or treating fuel, protecting exposed rods and relieving pressure where the maker specifies it are the items worth an hour when the equipment on site is parked.
Safe working practice around strong traction 4WD transport vehicle with hydraulic tipping body
Personal protective equipment and a stop rule are simple controls. Agreeing before work starts that anyone can stop the job is the single measure that most often prevents a serious incident near the machine itself.
Daily checks and maintenance on strong traction 4WD transport vehicle with hydraulic tipping body
Most failures start as something small that a walk-around would have caught. Fluid levels, belt tension, tyre or track condition and any fresh leak are the items worth two minutes at the start of each shift on the model in question. A simple log helps. Recording hours, fuel and any adjustment made to the machine in that duty gives the workshop a history, and that history is what turns an intermittent fault into a one-visit repair instead of three.
Fuel use and running demands of strong traction 4WD transport vehicle with hydraulic tipping body
Fuel is usually the largest controllable running demand. Operating style, correct tyre or track condition and a clean air supply all move consumption on the unit on the job by more than most buyers expect. Consumption is best measured over a full week rather than judged per hour. Idle time, repositioning and waiting for other trades are often the largest share of the fuel a machine built for the work burns on a site. Planning the work to reduce empty movement is free. Fewer repositioning cycles on the equipment in service means less fuel, less wear on the undercarriage or tyres and more of the shift spent on productive work.
Fitting strong traction 4WD transport vehicle with hydraulic tipping body into the wider site plan
Access and storage are worth settling early. Where the dumper will be parked, refuelled and serviced on site affects the working day more than most specification details, and it takes nothing to plan.

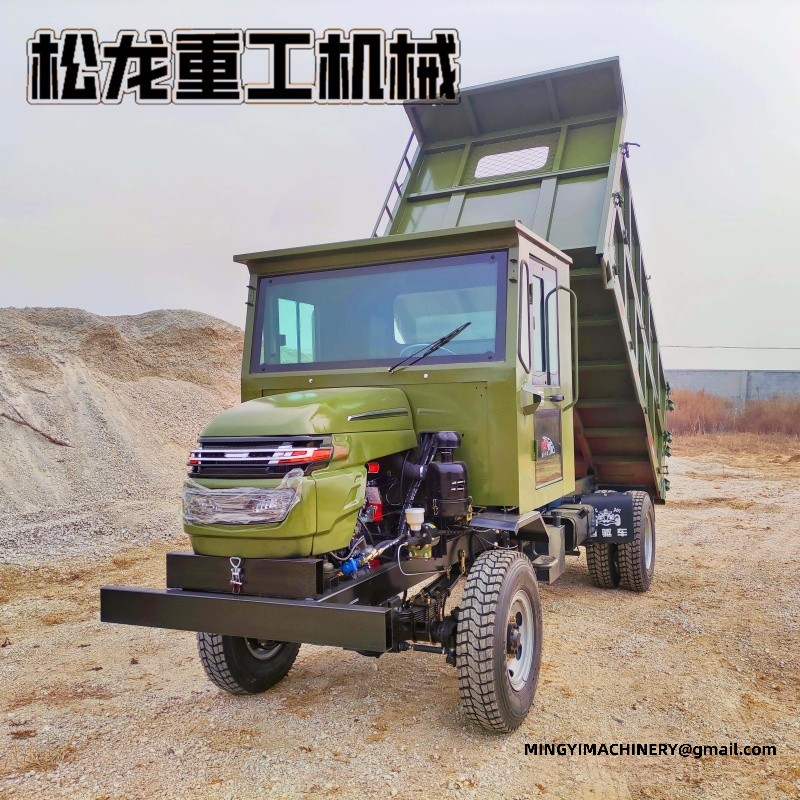

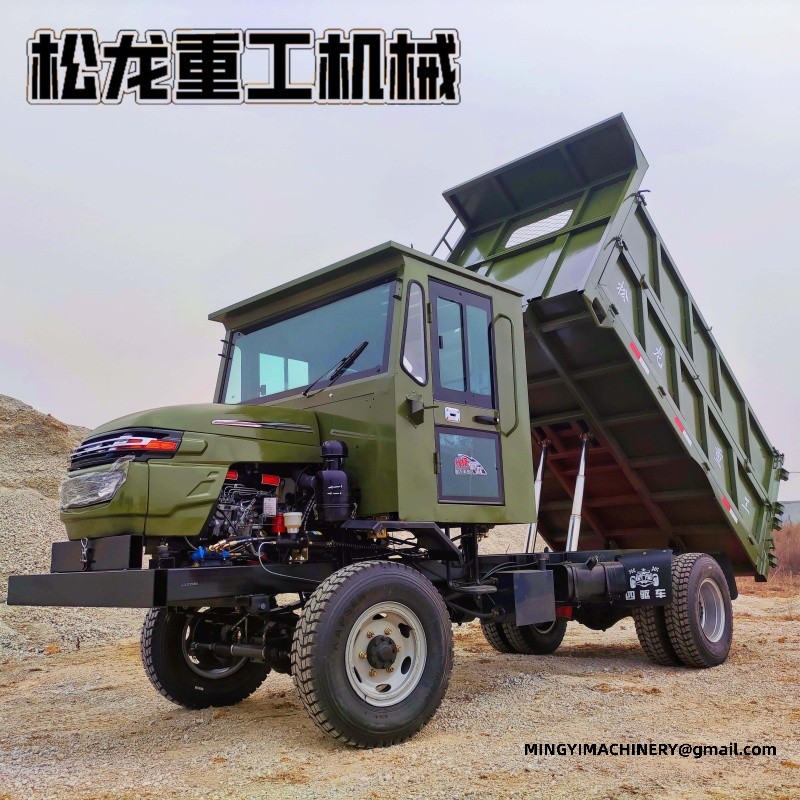

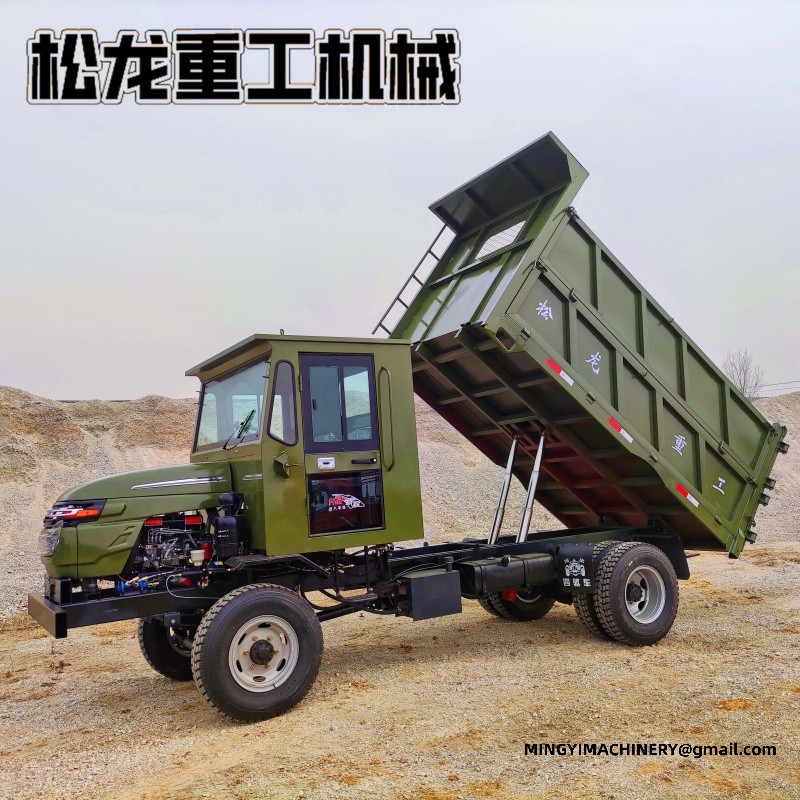

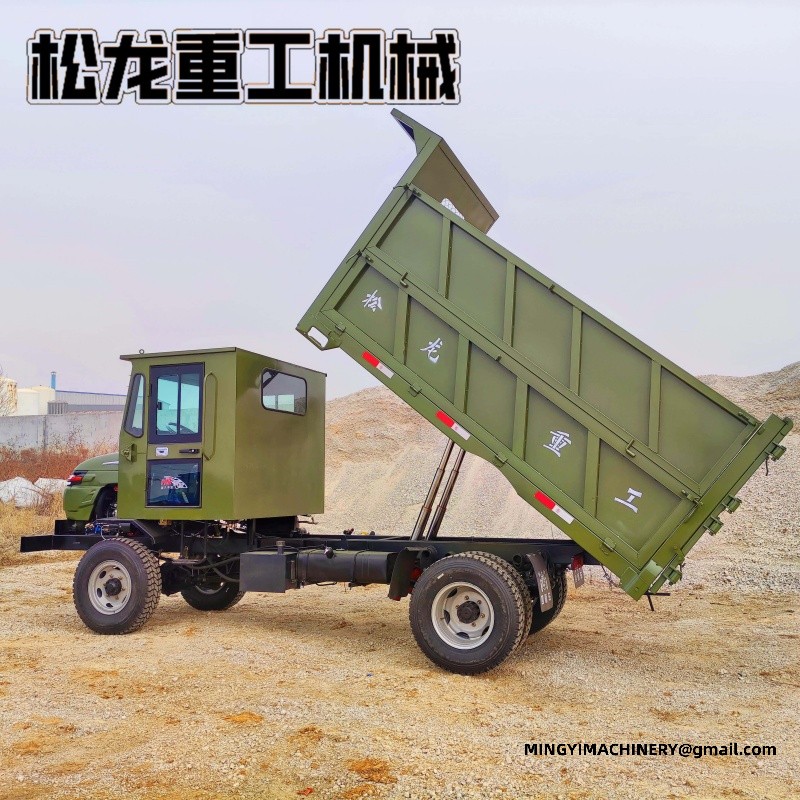

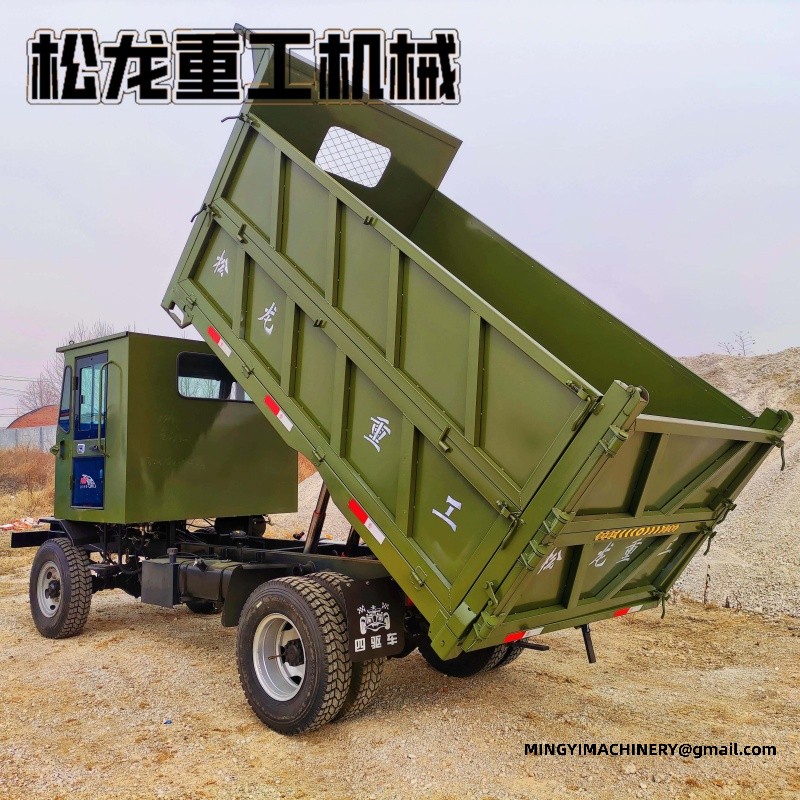

Tipping body and unloading on strong traction 4WD transport vehicle with hydraulic tipping body
The tipping body is the part that does the work. This class of machine specified with twin hydraulic rams and a tailgate that opens under load unloads in one pass, which matters more on a short haul than top speed does.
Running the unit in daily use in a mixed fleet
Fleet value comes from interchangeability. Operators who can step between machines without retraining, and a workshop that stocks one set of filters, keep utilisation higher than a fleet of individually optimised units. Utilisation matters more than the purchase decision over a few years. A machine of this size that sits idle ties up the same yard space standing still as one that earns, so the buying decision should follow the hours the machine will realistically work.
Soft ground, paddy fields and mud with the equipment on site
Four-wheel drive is only part of soft ground capability. Tyre choice, ground clearance and weight distribution decide whether the machine itself keeps moving in a paddy field or a marsh, and all three are specified rather than assumed. Recovering a stuck vehicle takes longer than preventing it. Planning the route, avoiding the worst ground and knowing where the model in question will turn is what keeps a soft-ground job productive.
Parts, service and support for the machine in that duty
Support after delivery is a parts question. Filters, belts, hoses and the wearing items specific to the unit on the job are what a buyer should plan to hold before the first service interval rather than order after a failure. Parts availability usually decides the engine and the brand. A machine built around components the local network already carries is serviced from stock, which is the difference between a day lost and a week lost.
Operator technique and familiarisation
Machine output varies more between operators than between brands. Smooth, planned movements put less load on the structure and use less fuel, and that difference is visible on the hour meter and in the service bills for a machine built for the work. Familiarisation should cover the limits as well as the controls. Knowing where the equipment in service loses stability, how it behaves at full reach, and what the warning lights mean prevents the incidents that are put down to bad luck.
Lighting and low light operation of the dumper
Visibility from the seat is different at night. Reflections, shadows and glare all hide detail, so this class of machine used after dark benefits from clean lenses, working wipers and a slower working pace.
Gradient and climbing ability of the unit in daily use
Ground and gradient together set the limit. Loose surface on a slope reduces what a machine of this size can pull regardless of engine power, so the surface survey belongs before the specification.
Transporting the equipment on site to and between sites
Moving the machine is part of owning it. Overall length, width and height decide which trailer or container the machine itself fits, and a machine that needs a permit or an abnormal load escort is a machine with a delivery delay built in. Shipping dimensions matter as much on export orders as they do locally. Confirming the packed size of the model in question before booking avoids re-booking freight after the machine is built.
Configuration data for the machine in that duty
The configurations below are the build sheets most often matched to the unit on the job. Engine, gearbox, axles, frame and body dimensions are confirmed together, because the body size and the axle rating have to suit the load before the engine rating matters.
| # | 10.Upgraded | 17.Luxury | 20.Luxury | 4.Upgraded |
|---|---|---|---|---|
| 1 | Single-cylinder diesel engine, 32 hp | Four-cylinder 490 diesel engine | Four-cylinder 4102 turbocharged diesel engine | Single-cylinder diesel engine, 25 hp |
| 2 | Full-time gearbox with four-wheel drive | Part-time gearbox, selectable 2WD/4WD | Model 140 part-time gearbox with four-wheel drive | Full-time gearbox with four-wheel drive |
| 3 | High/low range with crawler gear | High/low range with crawler gear | High/low range with crawler gear | High/low range with crawler gear |
| 4 | Front axle clutch | Fully enclosed cab | Fully enclosed cab | Front axle clutch |
| 5 | Fully enclosed cab | Six 700-16 mountain tyres | Six 825R16 steel-belted radial tyres | Fully enclosed cab |
| 6 | Oil brakes | Reinforced 130 front axle | Reinforced ISUZU-pattern front axle | Oil brakes |
| 7 | Four 700-16 mountain tyres | Reinforced ISUZU-pattern rear axle | Reinforced 1080 rear axle | Four 700-16 mountain tyres |
| 8 | Front axle 212 | Air cut-off brakes | Air cut-off brakes | Front axle 212 |
| 9 | Rear axle 130 | Reinforced 60 x 140 mm square tube frame | Reinforced 80 x 180 mm square tube frame | Rear axle 130 |
| 10 | Reinforced 60 x 140 mm square tube frame | Rear body 2.2 m long x 1.8 m wide x 0.45 m high | Rear body 3.0 m long x 2.2 m wide x 0.45 m high | Reinforced 60 x 140 mm square tube frame |
| 11 | Rear body 2.2 m long x 1.5 m wide x 0.45 m high | Tailgate with self-dumping function | Tailgate with self-dumping function | Rear body 2.2 m long x 1.5 m wide x 0.45 m high |
| 12 | Tailgate with self-dumping function | Side-opening rear body tailgate | Side-opening rear body tailgate with cab ladder | Tailgate with self-dumping function |
| 13 | Hydraulic power steering | Hydraulic power steering | Hydraulic power steering | Hydraulic power steering |
| 14 | Twin hydraulic rams | Twin hydraulic rams | Twin hydraulic rams | Twin hydraulic rams |
| 15 | Two-person comfort seat | Two-person comfort seat | Two-person comfort seat | Two-person comfort seat |
| 16 | Twin-battery electric start | Heavy-duty leaf springs | Heavy-duty thickened leaf springs | Twin-battery electric start |
| 17 | Square-nose bonnet | Twin-battery electric start | Twin-battery electric start | Square-nose bonnet |
| 18 | — | Round-nose bonnet | Square-nose bonnet | — |
| 19 | — | — | Four-cylinder 4105 turbocharged | — |
| 20 | — | — | Four-cylinder 4108 turbocharged | — |
| 21 | — | — | Single-cylinder engine, 25 hp | — |
| 22 | — | — | Single-cylinder engine, 28 hp | — |
| 23 | — | — | Single-cylinder engine, 32 hp | — |
| 24 | — | — | Two-cylinder engine, 38 hp | — |
| 25 | — | — | Four-cylinder 490 engine | — |
| 26 | — | — | Four-cylinder 4102 turbocharged engine | — |
Pre-delivery inspection before a machine built for the work leaves the shop
What the customer sees on arrival is decided before departure. The walk-around given to the equipment in service covers the same points the operator will check on day one, so there are no surprises when the crate is opened at the destination.
Storage and long idle periods for the dumper
Standing still is harder on a machine than working. Preparing this class of machine for a long idle period means clean fluids, a charged battery and protection for the exposed surfaces, because neglect is not the same as rest.
Reading the early symptoms on the unit in daily use
Operators notice things first because they hear the machine every day. Encouraging the person on a machine of this size to report small changes, and acting on them, is the most effective maintenance programme there is.
A second operator for the equipment on site
Different operators suit different work. The person who is quickest with the machine itself on open ground is not always the one who is safest in a confined space, and having both available is a genuine advantage.
Hot, humid and dusty conditions around the model in question
Dust is the enemy of every rotating joint. Keeping the radiator and the air intake of the machine in that duty clean, and cleaning them before they are blocked rather than after, is what separates a machine that lasts from one that overheats.
Wear items and spares worth holding for the unit on the job
The parts that stop a machine are rarely the parts that are hardest to find. Filters, belts, seals and the ground engaging tools on a machine built for the work are easy to hold and slow to replace, which is why they belong on the shelf rather than on an order.
Every line above is a build item rather than an optional extra, and the final sheet for the equipment in service is confirmed against the destination, the ground and the load before production.
E-mail：sales@mingycn.com
LINE（ID）：mingyicn
Slope working and stability with strong traction 4WD transport vehicle with hydraulic tipping body
Turning on a side slope is where most instability starts, so the route and the turning points are chosen before the first load is moved.
Tracks or tyres, the contact patch is what holds the machine, and worn or wrongly inflated running gear reduces it more than most operators expect.
Working up and down the fall line rather than across it keeps the load predictable, and where that is impossible the load is reduced.
Working alongside other plant with strong traction 4WD transport vehicle with hydraulic tipping body
A loading plan sets the spot where the truck waits, the direction it approaches from and the signal for it to leave.
Exclusion zones drawn on the ground work better than zones described in a meeting, and they are re-drawn when the job phase changes.
