4WD site dumper from China manufacturer

Buying a 4WD site dumper direct from a Chinese manufacturer changes what is possible rather than only what the transaction looks like. The specification is settled with the people who build the machine, so the frame, the axles, the cab and the body can be matched to the job instead of chosen from whatever is standing in a yard. It also means the buyer takes on steps a domestic purchase never involves: inspection before shipment, packing, documentation and support across time zones. This page covers both sides, along with the four configurations that are built and shipped.

What buying factory-direct actually changes

The advantage of dealing with the factory is that the build sheet becomes a conversation rather than a choice between two machines. Ground, haul length, material and hours can be given once and answered with a configuration, and details such as the tailgate arrangement or the bonnet shape can be settled before production rather than accepted afterwards. The obligation that comes with it is to be specific: a factory can build what is described, but it cannot guess what was meant, and the buyer who gives three facts gets a better machine than the buyer who gives none.

The four answers a factory needs

Four facts decide most of a build sheet, and a buyer who sends them with the first enquiry gets a useful answer with the first reply. What is the ground like for most of the year: soft, rocky, graded or none of those. How far does the material move, and is the route uphill, downhill or flat. What is being carried, and does it discharge freely or stick in the body. How many hours will the machine run in its busiest week. Engine, tyres, body and brakes all follow from those four rather than the other way round.

The four configurations that are built and shipped

The range runs from a single-cylinder 25 hp machine to a four-cylinder 4108 turbocharged engine. The 3.Standard uses the 25 hp single, the 9.Standard a single-cylinder 32 hp, the 14.Luxury a two-cylinder 38 hp, and the 24.Luxury the 4108 turbocharged four-cylinder. The two single-cylinder machines suit short runs, firm ground and lighter material, and they are the configurations for a buyer whose work is intermittent rather than continuous. The two-cylinder suits a mixed day. The turbocharged 4108 is the one for a long haul, a real gradient or a machine that runs loaded most of the shift.

Gearboxes: full-time and selectable

Two arrangements appear here. The 3.Standard and the 9.Standard use a full-time gearbox with four-wheel drive, which is the choice for a machine on soft, loose or uneven ground all day and the one that takes the decision away from the driver. The 14.Luxury uses a part-time gearbox selectable between two- and four-wheel drive and the 24.Luxury the Model 145 with the same choice, which suits a machine that travels a firm haul road and needs drive at both ends only for the work area. All four carry high and low range with a crawler gear.

Frame, body, brakes and tyres

Three of the four sit on the reinforced 60 x 140 mm square tube frame with a rear body 2.2 m long by 1.5 m wide and 0.45 m high; the 24.Luxury uses the reinforced 80 x 180 mm square tube frame with a 3.0 m by 2.2 m body of the same depth. Air cut-off brakes are fitted to the 14.Luxury and the 24.Luxury, and oil brakes to the 3.Standard and the 9.Standard. Tyres follow the same split: six 700-16 mountain tyres on the 14.Luxury, six 825R16 steel-belted radial tyres on the 24.Luxury, and four 700-16 mountain tyres on the two Standard machines. Every configuration has a tailgate with a self-dumping function.

Cab, tailgate and the driver's day

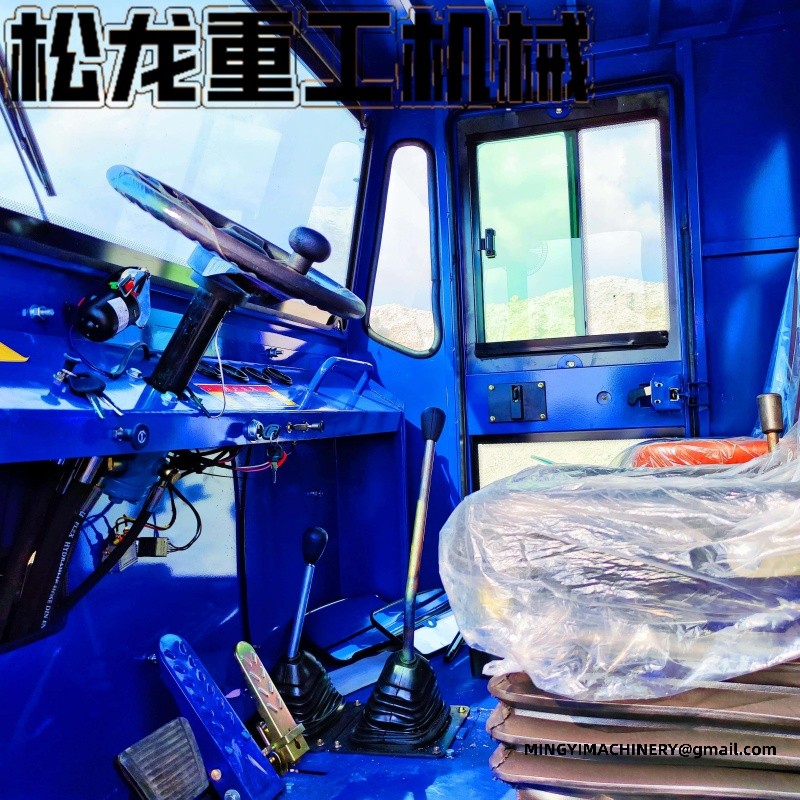

Cab specification follows the hours. The 24.Luxury has a fully enclosed cab, the 14.Luxury an enclosed cab, and the two Standard machines a simple cab. All four carry hydraulic power steering, a two-person comfort seat and twin-battery electric start. The 14.Luxury and the 24.Luxury add a side-opening rear body tailgate, and the 24.Luxury pairs it with a cab ladder. A side-opening tailgate lets the driver place material to one side rather than in a heap, and the ladder is what makes the daily look at the body and the ram mountings a job that gets done rather than skipped.

Tyres and the surface the machine works on

Tyre specification is where a factory-direct order is most often got wrong, because it is chosen from habit rather than from the ground. The mountain pattern fitted to the 14.Luxury, the 3.Standard and the 9.Standard clears mud and loose fill and cuts through a wet surface to whatever is firm beneath it, which is what an unmaintained haul road needs. The 825R16 steel-belted radial on the 24.Luxury suits a road that is graded and drained, where the machine covers distance rather than fighting for grip. Sending a photograph of the route is the simplest way to get this right.

Twin rams and where the load has to land

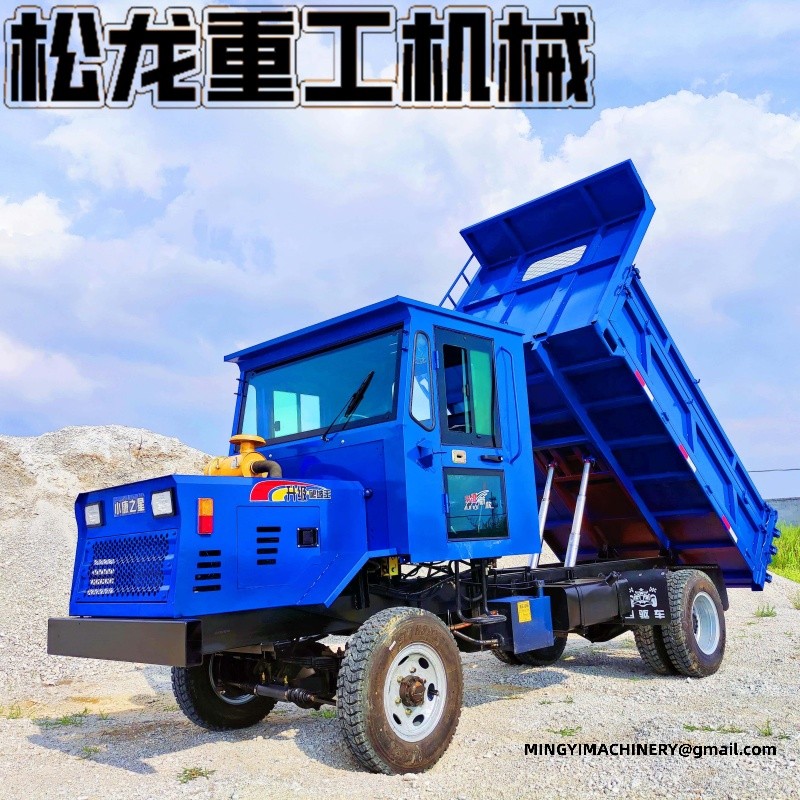

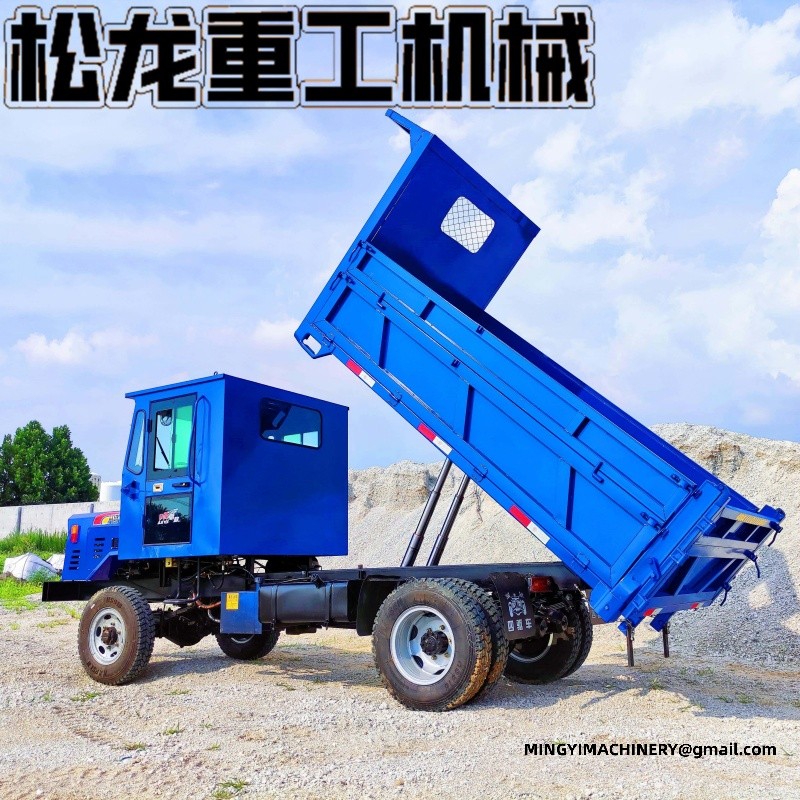

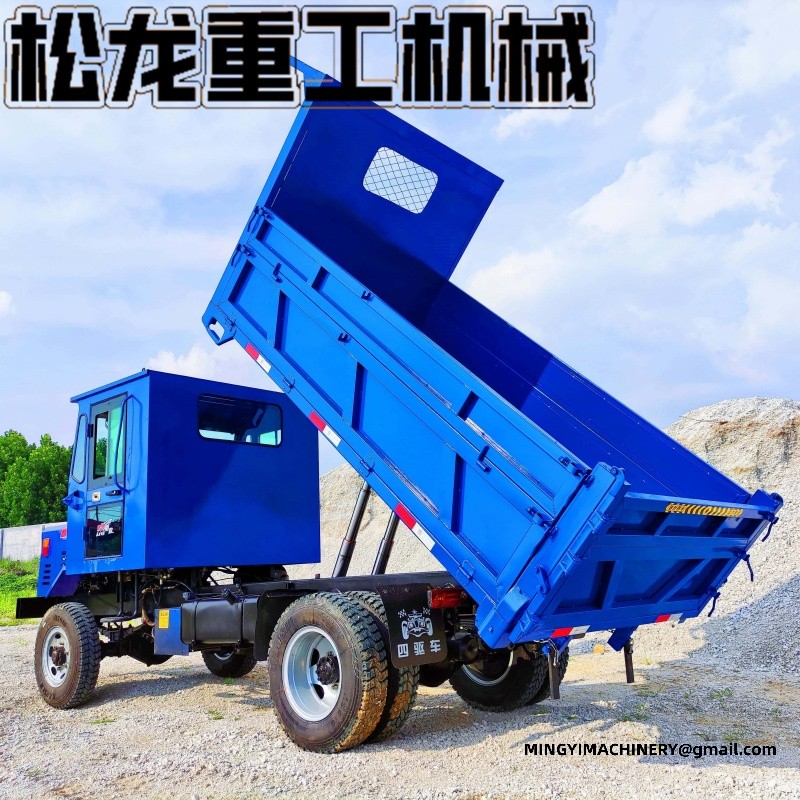

The body is lifted by twin hydraulic rams on every configuration, which is what allows an uneven load to be lifted without twisting the body. Material loaded by an excavator lands where the bucket released it and has usually shifted to one side by the end of the haul, so that is the normal case rather than the exception. The side-opening tailgate on the 14.Luxury and the 24.Luxury lets the driver place material along an edge or into a trench instead of in a heap, and the self-dumping function on all four starts the load leaving before the body reaches full height.

Matching the body to the machine that loads it

A site dumper is half of a pair, and the cycle belongs to whichever half is slower. Matching the body to the loader bucket is the practical way to size it: a body that takes too many buckets to fill keeps the loading machine waiting, and one that is filled in a single pass is carrying less than it could. Where the buyer knows which machine will load the dumper, that fact belongs in the enquiry, because it decides between the 2.2 m body and the 3.0 m body far more reliably than any rule of thumb.

What wears first and what to keep on the shelf

The wear items on this class of machine are known and inexpensive, and the sensible time to order spares is with the machine rather than after the first failure. Body and ram mounting bushes, hydraulic hoses, brake linings, filters and tyres are the list, and which of them the local network stocks is worth establishing before the machine ships rather than during the first breakdown. Clean hydraulic oil and greasing on schedule are most of what keeps the tipping system working, and a small weep found early is a hose rather than a machine standing idle.

Inspection before the machine is crated

A factory should be able to show what happens before a machine leaves, and a buyer should ask for it rather than assume it. On our floor the engine is run to temperature, the tipping circuit is cycled through its full travel under load, the brakes are tested with a load, and each function is checked against the build sheet. That inspection can be recorded and sent before shipment, which is the practical answer to the distance involved: watching the machine work is worth more than a photograph of it standing still.

Packing, container loading and the papers

Export orders add steps a domestic buyer never sees. Packed dimensions, securing points and any dismantling required are settled before the machine leaves the factory, and where several machines ship together, confirming how many fit a container is part of the planning rather than a detail to discover at the port. The commercial invoice, the packing list and any certificate the destination requires are agreed at order stage, because papers that arrive incomplete delay clearance longer than the voyage takes.

Support across time zones

The objection to buying at a distance is usually support rather than the machine. In practice most faults are found rather than fixed: a walk-around on video with the panels open usually identifies the cause without waiting for a visit, and avoids shipping a part that turns out not to be needed. What a buyer should settle before ordering is which wear items travel with the machine and how a non-stocked item is sent afterwards. The answer to the second question is what separates a supplier worth using from one that is convenient only once.

Standardising on one driveline

Buyers who expect to order more than one machine should settle the driveline on the first order. Keeping the same engine brand, the same axle pattern and the same cab across a fleet means one parts shelf, one service routine and a driver who can move between machines without relearning the controls. Where duties differ enough to justify two configurations, the useful split is one machine set up for the long haul and one for the tight work, rather than two sitting in the middle of the range.

Landing the machine and the first month

The first month tells an owner most of what matters. A walk-around at the start of each shift should cover the body and ram mountings, the hoses, tyre condition and pressures, brake response and fluid levels, and the tailgate latch. Air filtration needs more frequent attention in dust, and the body floor should be cleaned out rather than left carrying a skin of material from one load into the next. The build sheet that travelled with the machine records the configuration as delivered, which is what a workshop needs when a part is replaced years later.

Which configuration to start from

Where two configurations look equally suitable, the tie is usually broken by the ground. Soft or loose ground wants the wider tyre footprint, drive at both ends all day and the body that does not overload the frame. Firm ground with a long haul wants the radial tyres, the selectable gearbox and the larger body that moves more per cycle. Say which of those describes the route and the recommendation that comes back can be checked against it rather than taken on trust.

For a specification discussion or a build sheet for this 4WD site dumper, contact sales@mingycn.com or reach us on LINE (ID: mingyicn).
