Custom 4x4 Dumper with Tipper

A custom order should mean the machine is built for the job rather than decorated after it. On this range the choices that matter — engine, drive, cab, frame, body, tailgate and tyres — are settled before production, and each of the four configurations below is a different answer to the same set of questions. This page explains what is worth specifying, what the four configurations are, and how a custom build is confirmed before it goes into production.

What is worth specifying and what is not

Two kinds of customisation get offered and only one of them matters. The version that matters changes how the machine works: frame section, axle specification, brake type, body dimensions, tyre pattern and drive arrangement. The version that does not changes how the machine looks. A buyer with a fixed amount to spend is better served by spending it on the first list, because a machine with the right tyres and the right drive will still be working on ground that stops a more decorated one. Everything in the first list appears on the build sheet below.

The information a custom order needs

A factory can build what is described, but it cannot guess what was meant. Four facts are enough to start: what the ground is like for most of the year, how far the material has to move and whether the route is level, what is being carried and whether it discharges freely, and how many hours the machine runs in its busiest week. Given those, the engine, the body and the tyres follow. Without them, any recommendation is a guess with a specification attached to it.

The four configurations

The range covers a single-cylinder 32 hp on the 11.Luxury, a two-cylinder 38 hp on the 13.Upgraded, a four-cylinder 490 on the 16.Upgraded and a four-cylinder 4102 turbocharged engine on the 18.Standard. The single-cylinder machine suits short runs and lighter material on firm ground. The two-cylinder suits a full day of mixed work. The 490 is the general site machine, and the turbocharged 4102 is the one for a long haul, a real gradient, or a machine that runs loaded for most of the shift.

Drive arrangements

Three arrangements appear. The 13.Upgraded and the 16.Upgraded use a full-time gearbox with four-wheel drive, which is what a machine on soft or loose ground all day wants and what takes the decision away from the driver. The 11.Luxury uses a part-time gearbox selectable between two- and four-wheel drive, and the 18.Standard uses the Model 140 part-time gearbox with four-wheel drive. The 13.Upgraded also has a front axle clutch, which lets the driver disengage the front axle on firmer ground. All four carry high and low range with a crawler gear.

Frame, body and the widest of the four

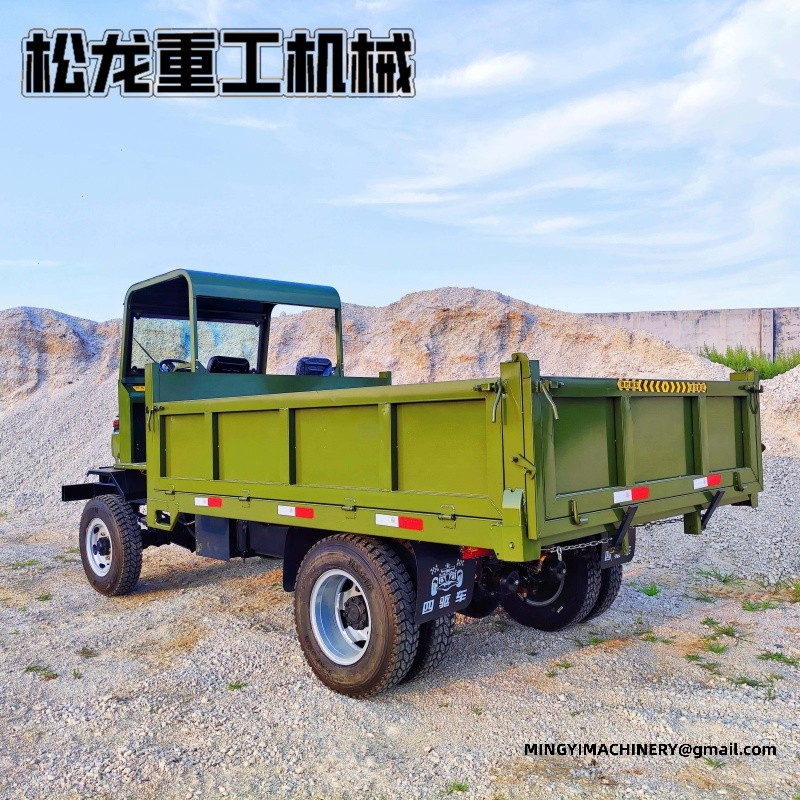

Three of the four sit on the reinforced 60 x 140 mm square tube frame with a rear body 2.2 m long by 1.5 m wide and 0.45 m high. The 18.Standard moves to the reinforced 80 x 180 mm square tube frame and carries a body of the same length and depth but 2.1 m wide. A wider, shallower body suits material that is spread rather than heaped and a load that is bulky rather than dense, and it is the configuration to consider where the machine carries bagged or bundled material as well as loose fill.

Brakes and tyres

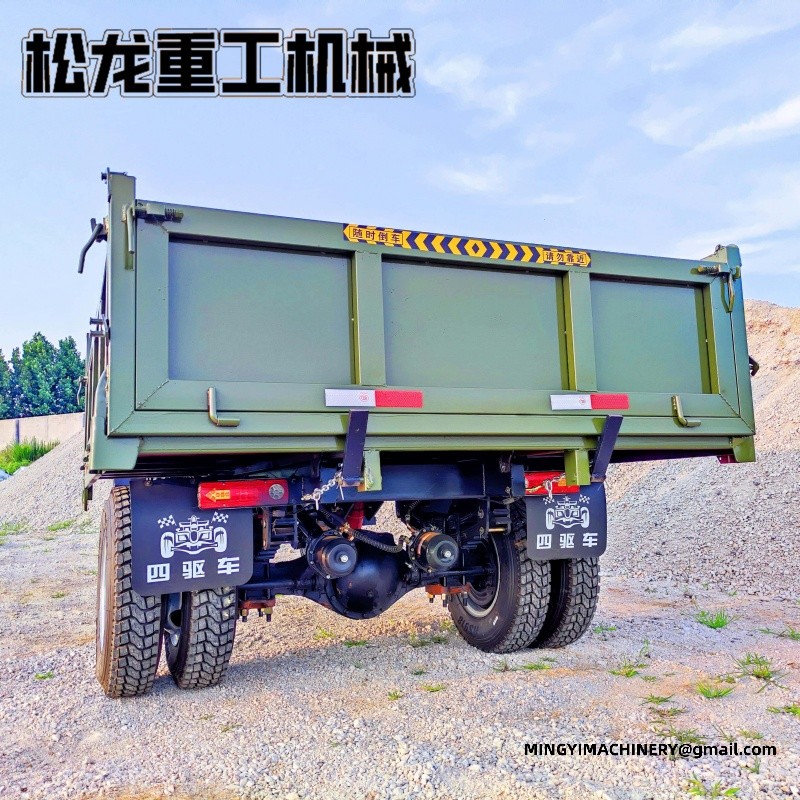

Air cut-off brakes are fitted to the 11.Luxury; the other three use oil brakes. Tyres split by count: six 700-16 mountain tyres on the 11.Luxury, the 16.Upgraded and the 18.Standard, and four on the 13.Upgraded. Six contact patches spread the weight across more ground, which is what keeps a loaded machine moving on soft fill and what limits the damage it does to a surface that has already been prepared. Four turn tighter and are easier to move between sites. The mountain pattern clears mud rather than packing with it.

Cab, bonnet and the driver's day

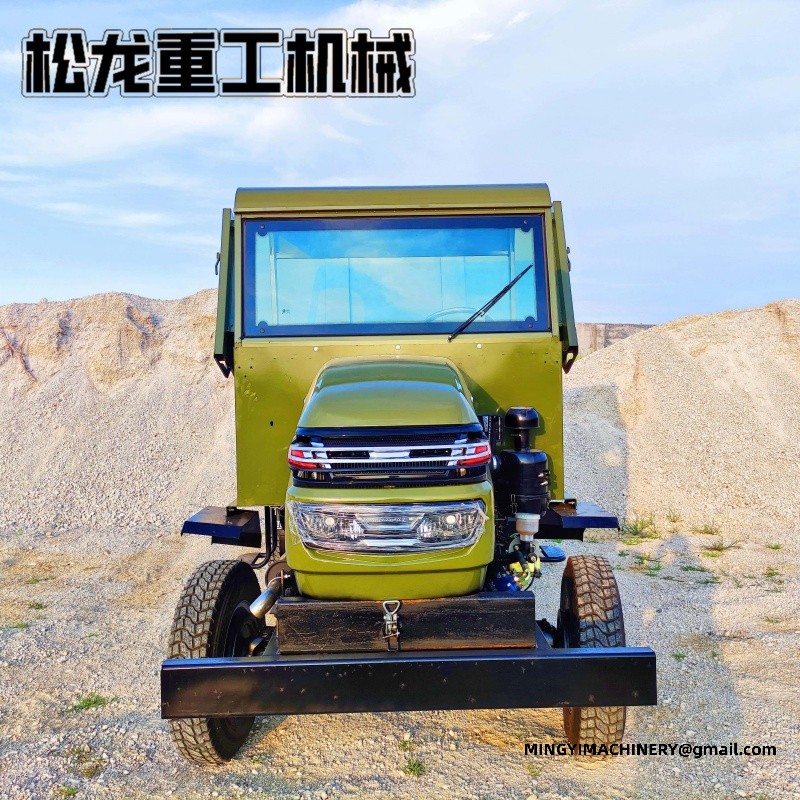

The 13.Upgraded and the 16.Upgraded have a fully enclosed cab, the 11.Luxury an enclosed cab and the 18.Standard a simple cab. All four carry hydraulic power steering, a two-person comfort seat and twin-battery electric start. Bonnet shape splits as well: the 13.Upgraded and the 16.Upgraded keep the round-nose bonnet and the 11.Luxury and the 18.Standard use the square-nose, which is the panel a driver sights over when placing the machine. Neither line decides a purchase on its own and both are noticed every day.

The tipper: rams, tailgate and discharge

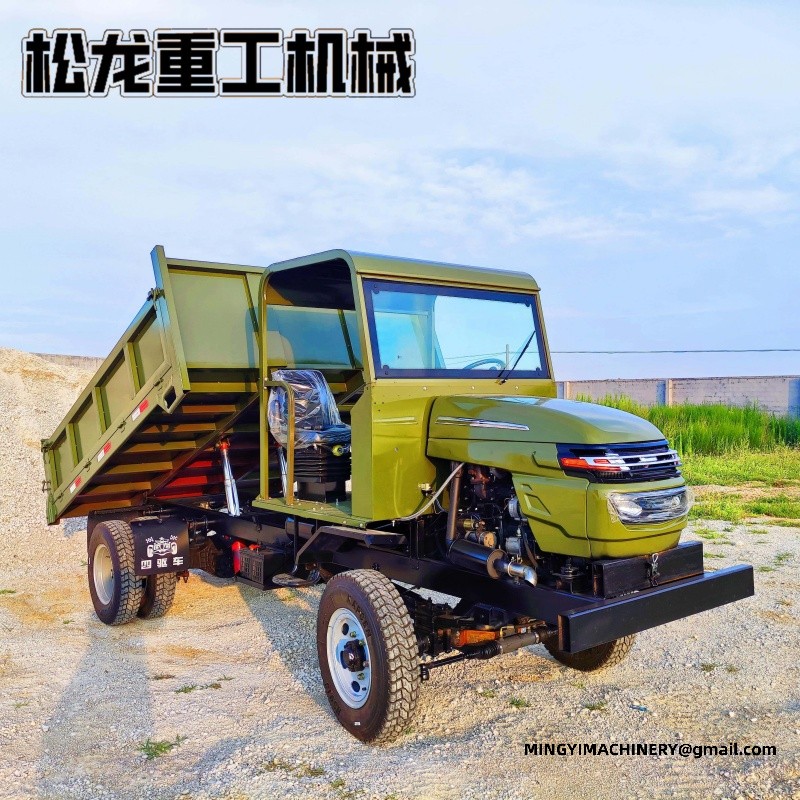

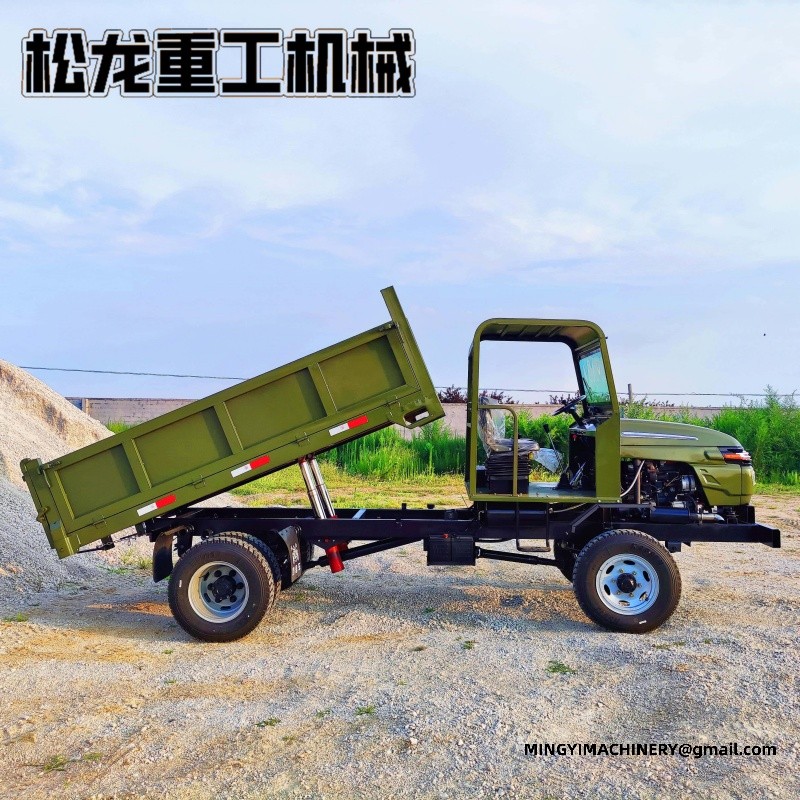

The body is lifted by twin hydraulic rams on every configuration, which is what allows a load that has shifted to one side to be lifted without twisting the body — and after a rough haul, a load that has shifted is the normal case rather than the exception. Every configuration has a tailgate with a self-dumping function, which starts the load leaving before the body reaches full height. The 11.Luxury adds a side-opening rear body tailgate, which lets the driver place material along an edge or into a trench instead of leaving a heap that has to be moved a second time.

Where a custom build is worth the wait

A standard configuration suits a buyer whose work matches what most buyers do. A custom build is worth specifying when it does not: ground that is softer or steeper than usual, a route with a width limit, material that is bulkier than fill, or a job that runs longer hours than the rest of the fleet. In each case the change is usually one or two lines on the sheet rather than a different machine, and it is worth saying so at the start rather than discovering it in the first week.

Matching the machine to what loads it

A dumper is half of a pair, and the cycle belongs to whichever half is slower. Matching the body to the loader bucket is the practical way to size it: a body that takes too many buckets to fill keeps the loading machine waiting, and one that is filled in a single pass is carrying less than it could. Where the buyer knows which machine will do the loading, that fact belongs in the order discussion, because it settles the body question more reliably than any rule of thumb.

Daily checks on a custom machine

Because a custom machine may differ from the one on the next site, the daily checks matter more rather than less. A walk-around at the start of each shift should cover the body and ram mountings, the hydraulic hoses where they run past the body, tyre condition and pressures, brake response and fluid levels, and the tailgate latch. Air filtration needs more frequent attention in dust, and the body floor should be cleaned out rather than left carrying a skin of material from one load into the next.

Hydraulic oil and the life of the tipping gear

Clean oil and greasing on schedule are most of what keeps a tipping system working. Contaminated oil is what shortens the life of the pump and the rams, and on a dusty site the filler and the breather deserve as much attention as the filter does. A small weep found early is a hose; the same weep found three weeks later is a machine standing idle. Where a machine works abrasive fill, the body floor and the ram mountings are the two places worth watching most closely.

Spares and support after a custom build

The worry with a custom machine is usually whether it can be supported afterwards. In practice the wear items are standard across the range: mounting bushes, hoses, brake linings, filters and tyres. Which of them the local network stocks is worth establishing before the machine ships rather than during the first breakdown. Where a fault is harder to find, remote diagnosis shortens it, because a walk-around on video with the panels open usually identifies the cause without waiting for a visit.

Packing, papers and pre-shipment checks

For export orders, packed dimensions, securing points and any dismantling required are settled before the machine leaves the factory, and the commercial invoice, the packing list and any certificate the destination requires are agreed at order stage, because papers that arrive incomplete delay clearance longer than the voyage takes. Before crating, each machine is run: the engine is brought to temperature, the tipping circuit is cycled under load, the brakes are tested with a load, and every function is checked against the build sheet that travels with it.

How a custom order is confirmed

The sequence is simple and worth insisting on. The job is described, the factory proposes a configuration, the buyer checks it against the ground and the route, and the sheet is signed before production starts. Every line discussed here is a build item rather than an optional extra, and the final sheet records the configuration as delivered, which is what a workshop needs when a part is replaced years later and what supports the value of the machine when it is eventually sold on.

Which configuration to start from

Where two look equally suitable, the tie is broken by the route. Soft or loose ground wants the wider tyre footprint and drive at both ends all day, which points at the 13.Upgraded or the 16.Upgraded. A longer haul or a bulkier load points at the 18.Standard with its wider body and turbocharged engine. A tight site with firm ground and short runs points at the 11.Luxury, whose side-opening tailgate is the one that places material rather than simply dropping it.

For a specification discussion or a build sheet for this custom 4x4 dumper with tipper, contact sales@mingycn.com or reach us on LINE (ID: mingyicn).
