Factory Direct 4x4 Dumper

Buying factory direct means the machine is specified with the people who assemble it rather than chosen from what a distributor happens to hold. On this range that matters because the four configurations share a great deal: all four are air-braked, all four have a side-opening rear body tailgate, all four run six tyres and all four use the square-nose bonnet. What differs is the engine, the frame and body, and the cab. This page sets out those three decisions and what the common platform means in use.

The common platform

It is worth starting with what does not change, because it is most of the machine. Air cut-off brakes are fitted to all four configurations, which sets how the machine holds a load on a gradient and what the driver can expect during a descent. Every configuration has a side-opening rear body tailgate, with a cab ladder on the two larger machines. Every configuration runs six tyres and uses the square-nose bonnet, and all four carry hydraulic power steering, twin hydraulic rams, a two-person comfort seat and twin-battery electric start.

The first decision: engine

Three ratings appear across the four. The 5.Luxury uses a single-cylinder 25 hp diesel, the 11.Luxury a single-cylinder 32 hp, the 19.Upgraded a four-cylinder 4102 turbocharged engine and the 22.Luxury a four-cylinder 4105 turbocharged engine. The single-cylinder machines suit short runs, firm ground and intermittent work. The turbocharged engines are the ones for a long haul, a sustained gradient or a machine that runs loaded for most of the shift, because they hold their pulling power when the load and the slope arrive together.

The second decision: frame and body

The 11.Luxury and the 5.Luxury sit on the reinforced 60 x 140 mm square tube frame with a rear body 2.2 m long by 1.5 m wide and 0.45 m high. The 19.Upgraded and the 22.Luxury use the reinforced 80 x 180 mm square tube frame, the first with a body 3.0 m long by 2.1 m wide and the second 3.0 m by 2.2 m, both 0.45 m deep. That is the decision with the most consequence on site: the larger bodies move more per cycle and need a wider route, and the smaller ones turn tighter and travel more easily.

The third decision: cab

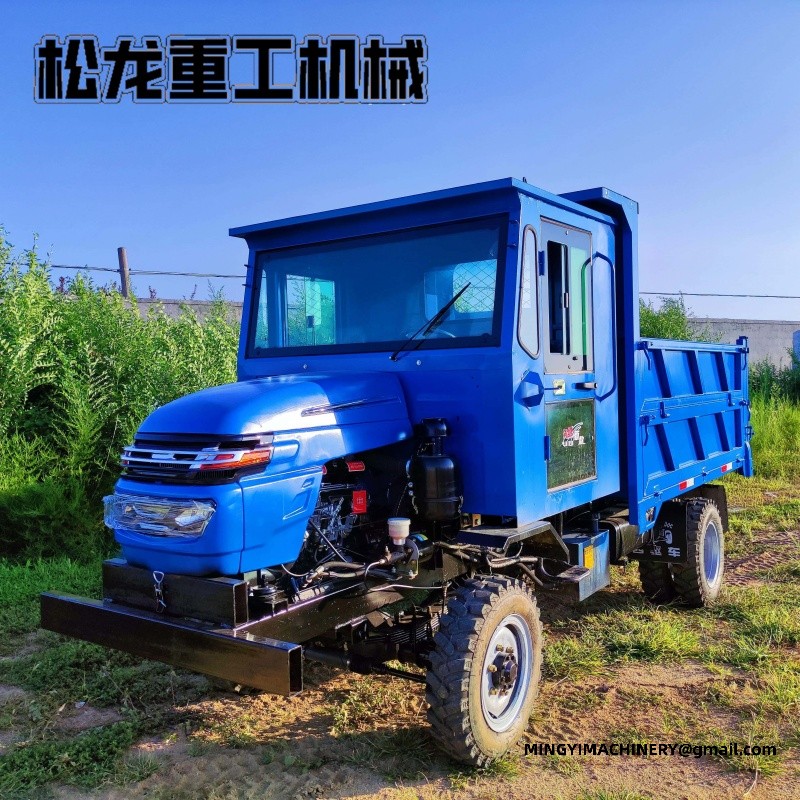

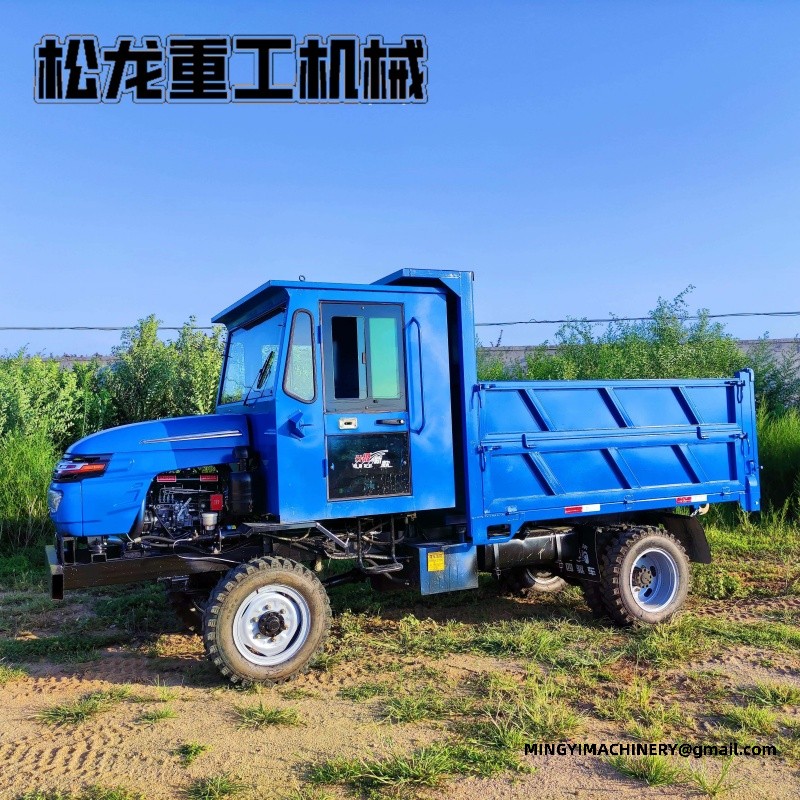

The 19.Upgraded and the 22.Luxury leave the factory with a fully enclosed cab and the 11.Luxury and the 5.Luxury with an enclosed cab. On a machine that works a full day, the enclosure is what keeps the driver effective in the last hour as well as the first, and on a dusty route it is the difference between a cab that is a working space and one that is somewhere to endure. The seat, the steering and the electric start are common to all four.

Drive arrangements

All four use a part-time gearbox. The 11.Luxury and the 5.Luxury are selectable between two- and four-wheel drive; the 19.Upgraded uses the Model 140 part-time gearbox with four-wheel drive and the 22.Luxury the Model 145 with four-wheel drive. All four carry high and low range with a crawler gear. Selectable drive suits a route that alternates between a firm haul road and a soft work area, since running in two-wheel drive on the firm sections saves tyre and driveline wear.

Axles and tyres

Axle specification follows the frame. The 11.Luxury and the 5.Luxury run a Model 212 front axle and a Model 130 rear axle; the 19.Upgraded and the 22.Luxury run reinforced ISUZU-pattern front axles, with a reinforced 1061 rear axle on the 19.Upgraded and a reinforced 1080 rear axle on the 22.Luxury. Tyres follow the same split: six 700-16 mountain tyres on the two smaller machines, six 750R16 radials on the 19.Upgraded and six 825R16 radials on the 22.Luxury.

Six tyres across the range is worth noting, because it is the specification that keeps a loaded machine moving on soft ground and limits the damage it does to a surface that has been prepared. The mountain pattern clears mud and loose fill; the radials suit a graded route where the machine covers distance. Tyre life follows the route rather than the load.

The tailgate and placing a load

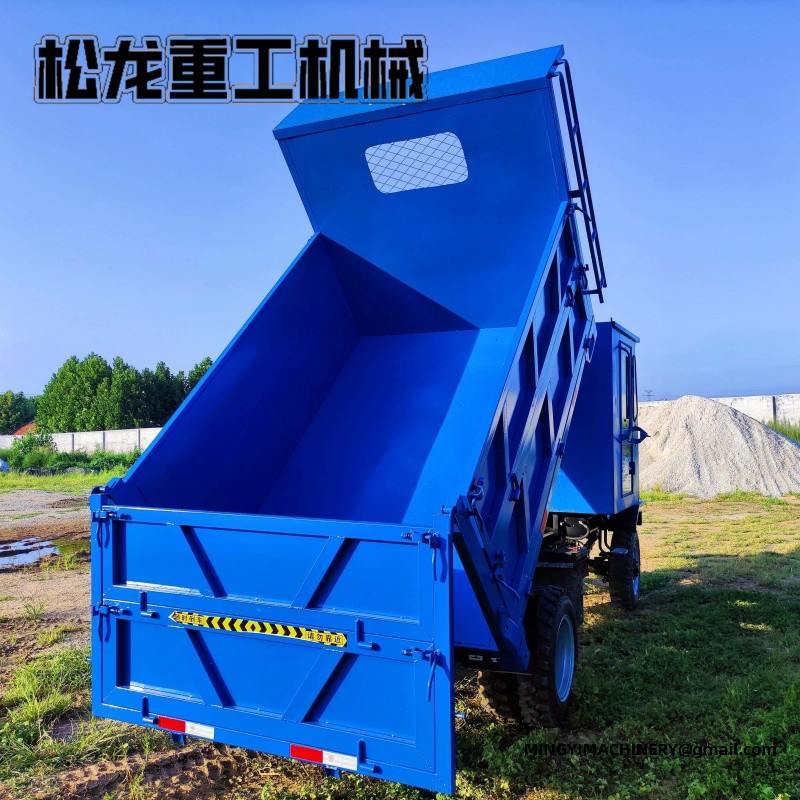

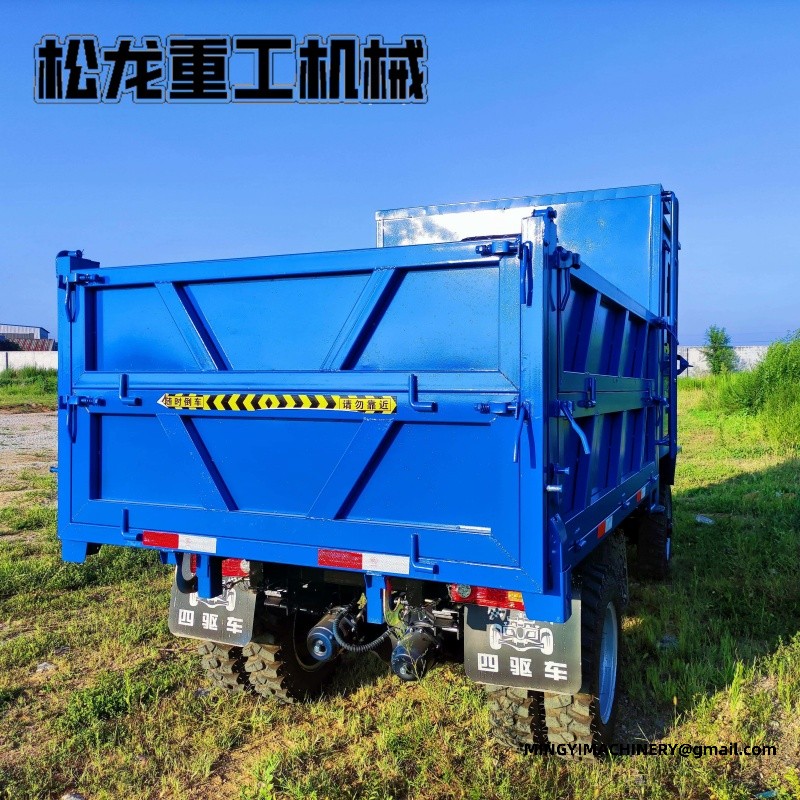

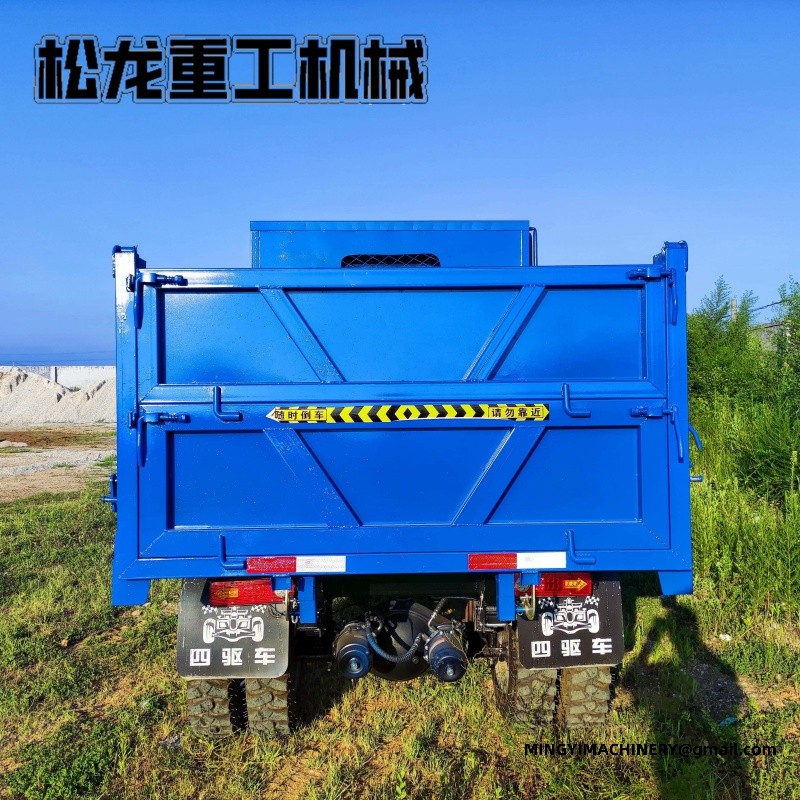

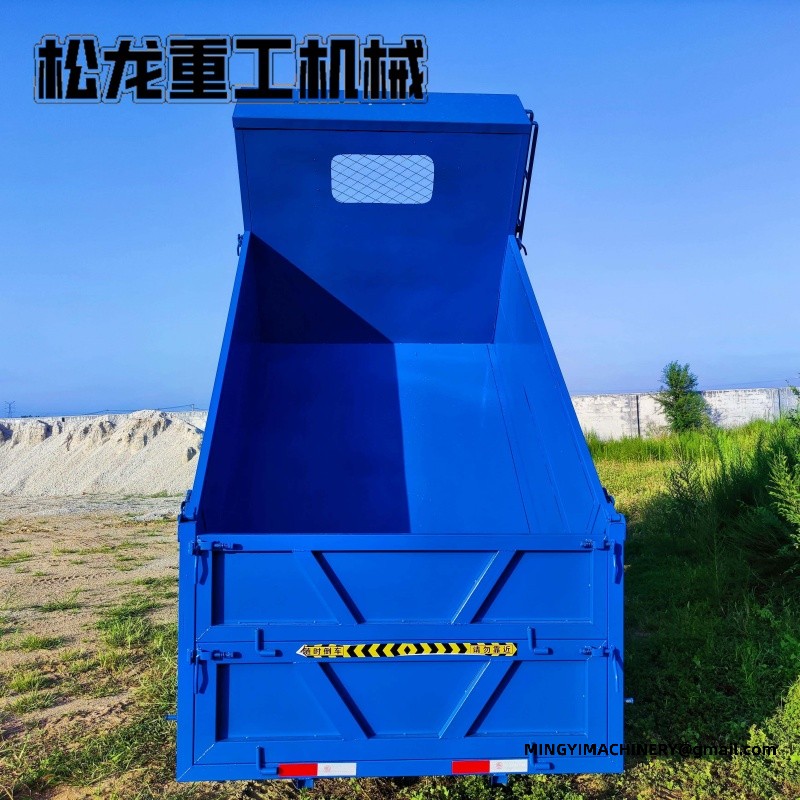

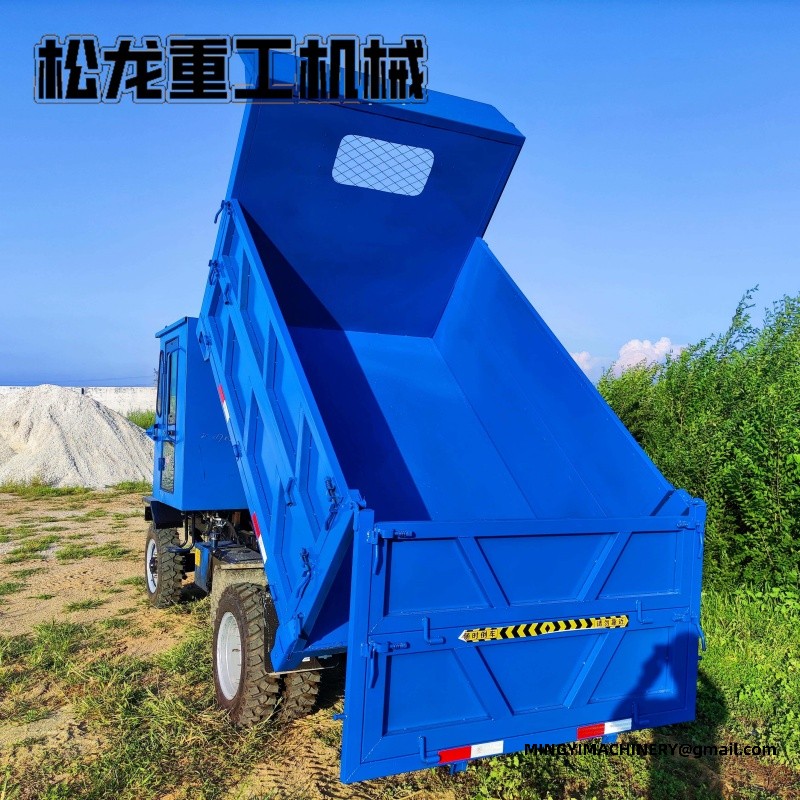

A side-opening rear body tailgate on every configuration is the feature that shapes how the machine works at the tipping point. It lets the driver place material along an edge or into a trench rather than leaving a heap, and the cab ladder on the two larger machines makes checking the body and the ram mountings a practical job rather than one that gets skipped. Every configuration also has a tailgate with a self-dumping function, which starts the load leaving before the body reaches full height.

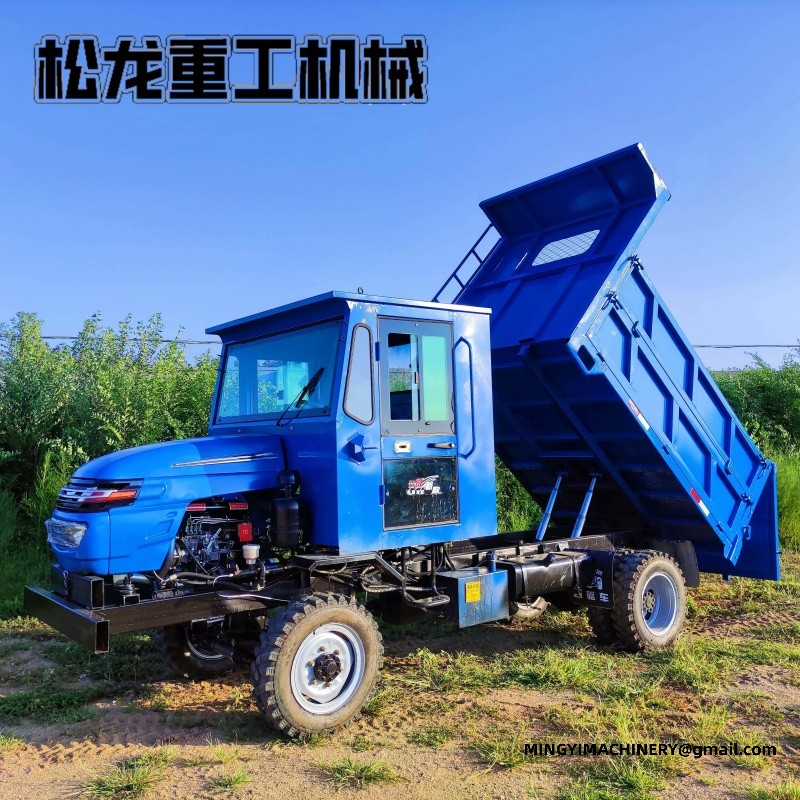

Twin hydraulic rams lift the body on all four, which is what allows a load that has shifted to one side to be lifted without twisting the body. After a rough haul a load that has shifted is the normal case rather than the exception, and that is why the ram mountings are the first thing to look at on a walk-around.

Suspension across the range

Heavy-duty leaf springs are fitted to the 11.Luxury, the 22.Luxury and the 5.Luxury, and thickened heavy-duty leaf springs to the 19.Upgraded. Springs matter more than their line on the sheet suggests, because a machine loaded by an excavator takes the load as a series of impacts rather than as a steady weight, and the springs are what stop those impacts reaching the frame and the cab. The thickened specification on the 19.Upgraded suits the larger body and the longer haul.

Matching the body to what loads it

A dumper is one half of a pair, and the cycle belongs to whichever half is slower. Matching the body to the loader bucket is the practical way to size it: a body that takes too many buckets to fill keeps the loading machine waiting, and one that is filled in a single pass is carrying less than it could. Where the buyer knows which machine will do the loading, that fact settles the body size more reliably than a general rule about machine class.

What buying direct is worth

Three things, in practice. The configuration can be matched to the job rather than selected from stock. The build sheet records what was actually built and travels with the machine, which is what a workshop needs when a part is replaced years later. And questions about parts and support reach the people who specified the components rather than someone reading from a catalogue. The obligation that comes with it is to describe the job properly, because a factory builds what is described.

Gradient work and the loaded descent

Air cut-off brakes across the range suit a machine that meets a gradient with a loaded body, but the hardware only helps if the descent is planned. The practice is to choose the gear on the way up, descend in low range, and let the engine and the crawler gear do the work rather than the brakes. A loaded machine should never be relying on its brakes alone on a loose surface, and keeping the haul road graded is part of that rather than a separate job.

Ground that is soft at one end of the route

Routes are rarely uniform, and the usual pattern is a firm haul road with a soft section at the working end. Selectable drive on all four configurations suits exactly that: two-wheel drive on the firm part saves tyre and driveline wear, and drive at both ends is engaged for the soft section before the machine reaches it rather than after it has stopped. Six tyres across the range give the margin that makes the soft section passable rather than marginal.

Daily checks

Because the four configurations share brakes, tailgate arrangement and tyre count, the daily checks are the same whichever one is on site. At the start of each shift: the body and ram mountings, the hydraulic hoses where they run past the body, tyre condition and pressures, brake response and fluid levels, and the tailgate latch. Air filtration needs more frequent attention in dust, and the body floor should be cleaned out rather than left carrying a skin of material.

Spares and support

The wear items are standard across the range: mounting bushes, hoses, brake linings, filters and tyres. Which of them the local network already carries is worth establishing before the machine ships rather than during the first breakdown, because components that network stocks are serviced from stock. Where a fault is harder to find, remote diagnosis shortens it, since a walk-around on video with the panels open usually identifies the cause without waiting for a visit.

Shipping, papers and the check before crating

Export orders add steps a domestic buyer never sees. Packed dimensions, securing points and any dismantling required are settled before the machine leaves the factory, and the commercial invoice, the packing list and any certificate the destination requires are agreed at order stage, because papers that arrive incomplete hold a consignment at the port longer than the voyage took. Before crating, each machine is run: the engine is brought to temperature, the tipping circuit is cycled under load, the brakes are tested with a load, and every function is checked against the build sheet.

Which configuration to start from

The decision reduces to the route. A tight site with short runs and firm ground points at the 11.Luxury or the 5.Luxury, both on the smaller frame with mountain tyres, and the engine rating then follows the length of the day. A long haul on a maintained route points at the 22.Luxury with the largest body and the 825R16 radials. Something in between, with a wider body but not the widest, points at the 19.Upgraded.
