Heavy Duty Site Dumper

A heavy duty site dumper is specified by the week, not by the job. Machines in this range spend their lives on repeat runs between an excavation face, a stockpile and a tipping point, and what wears them out is not one hard load but the number of cycles in a shift. This page looks at the four configurations that are built and shipped, what separates them in use, and the questions worth settling before an order is placed: the ground, the haul length, who loads the machine and how many hours it will run.

Duty cycle comes before horsepower

A dumper loaded by an excavator works to the excavator's rhythm. The useful measure is cycles per hour, and that depends on the haul length, the condition of the haul road and how quickly the body discharges rather than on engine rating alone. Specifying from the cycle means asking how far the material has to move, how many passes the job needs per day and how much of the shift the machine will spend queuing. A machine that is quick on a short, firm run can still be the wrong choice on a long, soft one, and the difference shows up in fuel, tyres and driver fatigue rather than in anything written on the specification sheet.

The engines on the sheet and where each one fits

The engine choice runs from a single-cylinder 28 hp unit to a four-cylinder 4108 turbocharged engine, and the right one follows the haul rather than the brochure. The single-cylinder 6.Standard suits short runs on firm ground with light material and a driver who is not fighting for traction. The four-cylinder 490 in the 16.Upgraded is the general site machine, at home on mixed ground and a medium haul. The turbocharged 4102 and 4108 are specified where the haul is long, the gradient is real or the machine runs loaded for most of the shift, because a turbocharged engine holds its pulling power when the load and the slope arrive together.

The 20.Luxury sheet also lists the wider engine selection: 4105 turbocharged, 4108 turbocharged, the four-cylinder 490, the 4102 turbocharged, and the single-cylinder 25 hp, 28 hp and 32 hp and two-cylinder 38 hp units. That is the configuration to discuss when a fleet wants one cab and one driveline across several different duties, or when an operator is replacing a machine and wants the new one to feel familiar on the same ground.

Gearboxes: full-time, part-time and selectable

Three gearbox arrangements appear across the range. The full-time gearbox with four-wheel drive on the 16.Upgraded and the 6.Standard keeps drive at both ends all the time, which is what a machine working on soft, loose or uneven ground needs and what takes the decision away from the driver. The Model 140 part-time gearbox on the 20.Luxury and the Model 145 with selectable 2WD and 4WD on the 24.Luxury let the driver choose, which suits a machine that travels a firm haul road between work areas and only needs drive at both ends on the last part of the run.

All four carry high and low range with a crawler gear, and the crawler gear is the one that matters on a loaded start against a gradient, and the one that saves the clutch on a machine that is stopping and starting in a queue.

Frame and body: two sizes, two different jobs

The frame is the clearest dividing line in the range. The reinforced 60 x 140 mm square tube frame under the 16.Upgraded and the 6.Standard carries a rear body 2.2 m long by 1.5 m wide and 0.45 m high. The reinforced 80 x 180 mm square tube frame under the 20.Luxury and the 24.Luxury carries a 3.0 m by 2.2 m body of the same depth. Choosing between them is an access question as much as a capacity one: the wider body moves more per pass but needs a wider haul road, a wider tipping bay and more room to turn, and on a tight site that is usually the deciding factor.

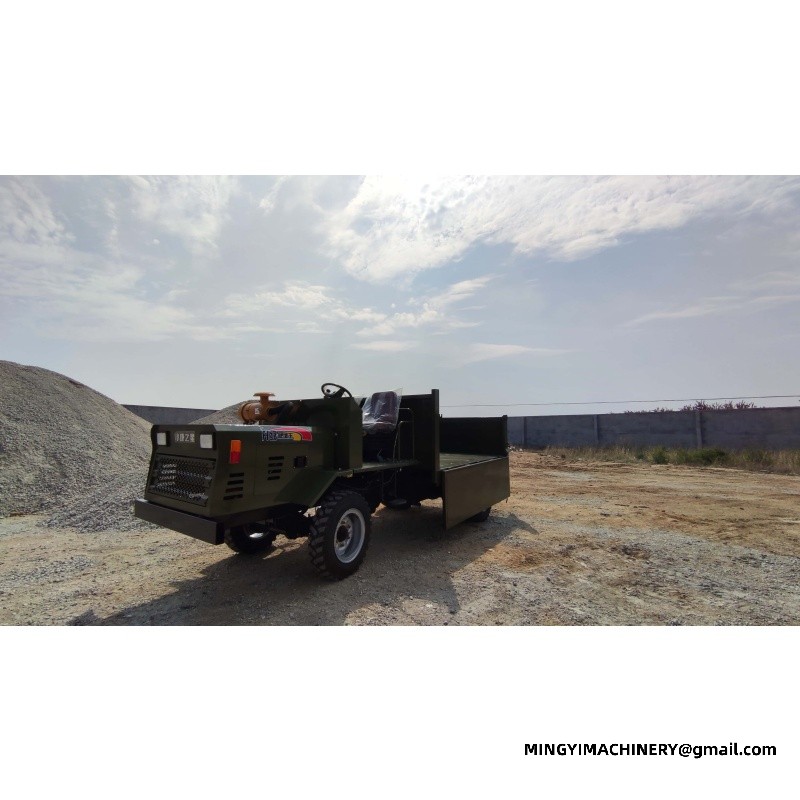

Every configuration leaves the factory with a tailgate with a self-dumping function, and the tailgate arrangement is worth describing when the order is discussed wherever the load has to be placed rather than simply dropped.

Six wheels or four

Tyre count follows the frame. The 20.Luxury and the 24.Luxury run six 825R16 steel-belted radial tyres, the 16.Upgraded runs six 700-16 mountain tyres, and the 6.Standard runs four. A six-wheel machine spreads the load across more contact patches, which is what keeps it moving on soft ground and what reduces the damage a loaded machine does to a surface that has already been finished. The four-wheel 6.Standard turns tighter and is easier to move between sites, which is the trade to weigh where the work is light and the access is awkward.

Tipping gear and the tailgate arrangement

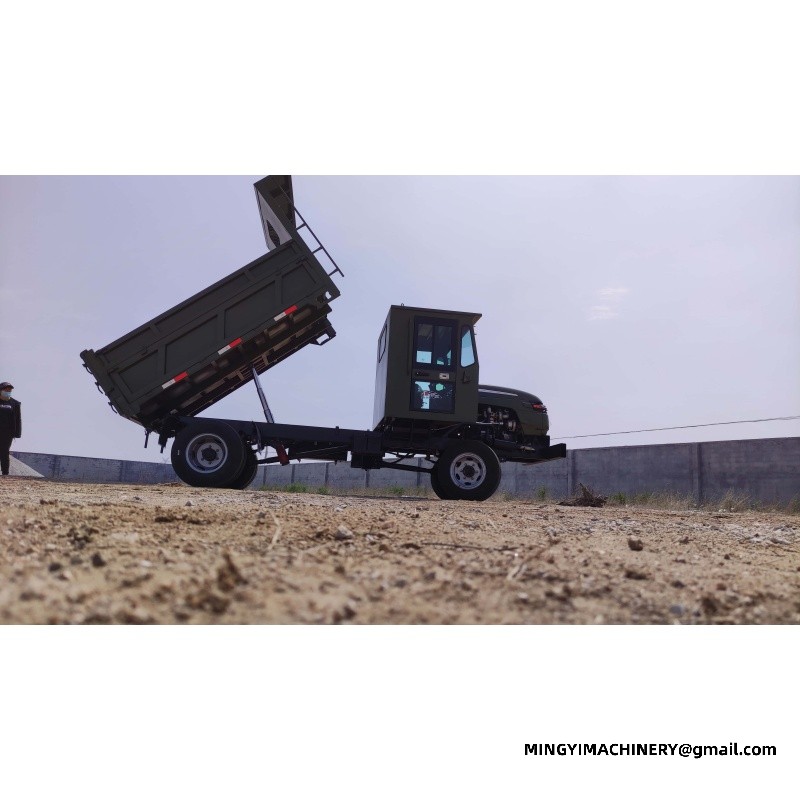

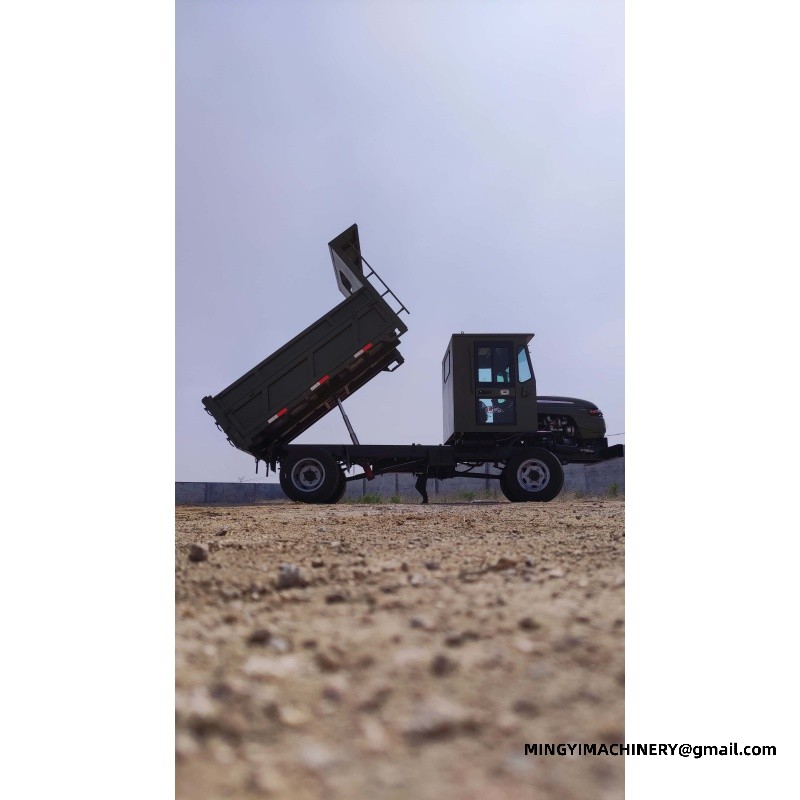

The body is lifted by twin hydraulic rams on every configuration. On the 20.Luxury and the 24.Luxury the tailgate is side-opening and is paired with a cab ladder. A side-opening tailgate changes how a driver works at the tipping point: the load can be placed to one side, which is what is wanted when tipping into a trench or against a face, and the ladder is what makes the daily look at the body and the ram mountings practical rather than skipped.

Twin rams rather than a single central ram also change the way the body behaves with an uneven load. A load that has shifted to one side during the haul is the normal case rather than the exception on a rough road, and a body supported at two points lifts it without the twist that a single ram has to take.

Cab, seat and controls over a long shift

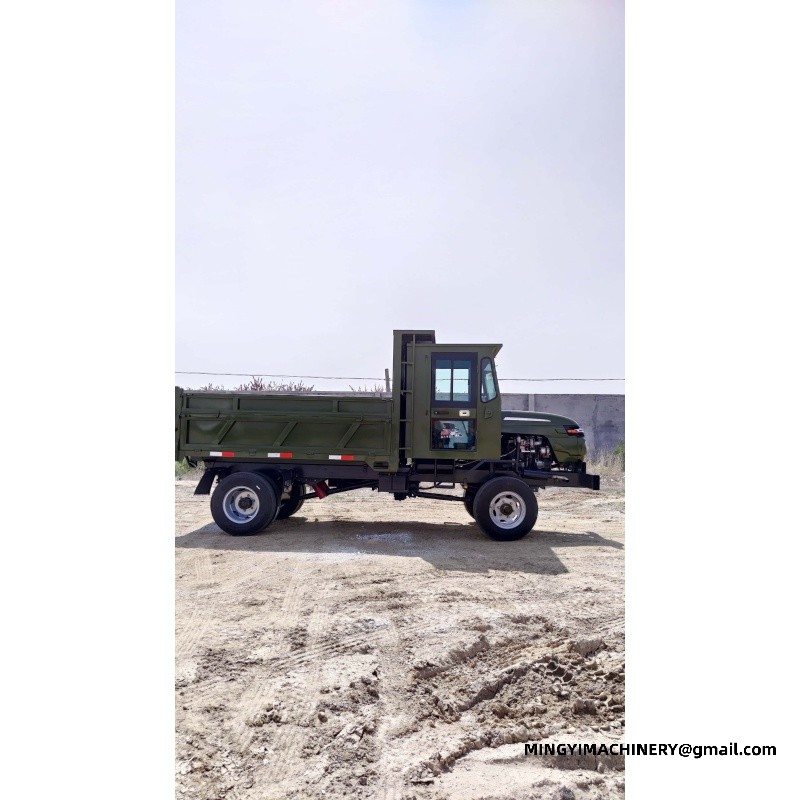

Three of the four configurations leave the factory with a fully enclosed cab; the 6.Standard has a simple cab. On a machine that runs a full shift the cab is a productivity item rather than a comfort one, because a driver who is out of the dust and the weather works more consistently in the last hour than in the first. All four carry hydraulic power steering, a two-person comfort seat and twin-battery electric start.

Twin batteries are worth raising specifically if the machine will start cold on winter mornings. A diesel asked to turn over at low temperature is where a shift is lost, and the twin-battery arrangement on these configurations is what makes that start dependable rather than hopeful.

Suspension and bonnet: the lines that get overlooked

Leaf spring specification differs across the range and is easy to miss. The 20.Luxury carries heavy-duty thickened leaf springs and the 24.Luxury heavy-duty leaf springs, and both sit on the larger frame under the larger body, which is where the extra spring rate earns its keep. A machine that is loaded by an excavator takes the load as a series of impacts rather than a steady weight, and the springs are what stop those impacts reaching the frame and the cab.

Bonnet shape is a practical difference too. The 16.Upgraded keeps the round-nose bonnet while the 20.Luxury, the 24.Luxury and the 6.Standard use the square-nose. That is the panel a driver looks over when placing the machine in a tight bay, and fleets that run several machines usually prefer one shape so that a driver moving between them is not re-learning the sight lines on Monday morning.

Tyres and the ground they run on

Tyre choice follows the ground. The 700-16 mountain tyre is the pattern for mud, loose fill and a haul road that is not maintained, because it clears material that a road pattern packs with. The 825R16 steel-belted radial fitted to the two largest machines suits a haul road that is graded and drained, where the machine covers distance rather than fighting for grip. Whichever is specified, the road decides more about tyre life than the tyre does: standing water, sharp fill and a surface that is never graded will wear out a set faster than any amount of hard loading.

Brakes, gradients and loaded descents

Air cut-off brakes appear on the 20.Luxury and the 24.Luxury, and oil brakes on the 16.Upgraded and the 6.Standard. On a machine that works a gradient with a loaded body, the holding system is the specification that matters most, and the driver needs to know what the machine has before the first descent rather than after it. The safe practice is to plan the descent before the load goes in: choose the gear on the way up, use the crawler gear and the engine on the way down, and keep the haul road graded so that a loaded machine is never braking on a loose surface.

Moving the machine between sites

Owners who work across several sites should check the transport dimensions before ordering. A machine that fits a standard trailer can be moved by any operator with a suitable vehicle, while the wider body on the 80 x 180 mm frame narrows that choice and complicates every move. Settling this early takes nothing and avoids discovering on a Friday afternoon that the machine needs a specialist haulier. For export orders, packed dimensions, securing points and any dismantling required are agreed before the machine leaves the factory, along with the commercial invoice, the packing list and any certificate the destination requires.

Parts, service and standardising a fleet

Parts availability usually decides the engine brand and the axle pattern. A machine built around components the local network already carries is serviced from stock, which is the difference between a day lost and a week lost. Fleets running several of these machines should standardise on one engine and one axle pattern where the duties allow it, because that keeps the parts shelf short and the service schedule simple. Remote diagnosis shortens most faults: a walk-around on video with the panels open often identifies the cause without waiting for a visit, and avoids shipping a part that turns out not to be needed.

Daily checks and what wears first

On this class of machine the wear points are known and worth a walk-around at the start of each shift: body and ram mountings, the tipping rams and their hoses, tyre condition and pressures, brake response and fluid levels, and the tailgate latch. Air filtration needs more frequent attention in dust, and on machines working abrasive fill the body floor wears from the inside out. Keeping ahead of those items is not separate from productivity — a machine that starts every morning and tips every load out-performs a faster one that is waiting on a hose.

What is confirmed before the machine is built

Every machine is inspected on our floor before it is crated: the engine is run to temperature, the hydraulics are cycled, the brakes are tested with a load, and each function is checked against the build sheet. The sheet that travels with the machine records the configuration as delivered, which is what a workshop needs when a part is replaced in year three and what supports the resale value at replacement time. Every line above is a build item rather than an optional extra, and the final sheet is confirmed against the destination, the ground and the duty before production starts.

For a specification discussion or a build sheet for this heavy duty site dumper, contact sales@mingycn.com or reach us on LINE (ID: mingyicn).
