Diesel Off Road Dumper for Mining

Mining and quarry duty asks more of a dumper than general site work does, and not in the way most buyers expect. The loads are not unusual; the conditions are. Machines run more hours, the dust is constant, the material is abrasive, and the routes are often steep. This page sets out what that means for the specification, the four configurations that are built and shipped here, and the maintenance that keeps a machine working in these conditions rather than merely running.

What mining duty changes

Four things separate a mine or quarry route from a construction site. The machine works more hours per week, often on a shift pattern rather than a single day. The dust load is continuous rather than occasional, which moves air filtration from a service item to a weekly one. The material is sharper and heavier on the body floor. And the routes frequently include a sustained gradient, which makes the loaded descent a routine operation rather than an occasional one.

None of those are answered by a bigger engine. They are answered by filtration, by brake specification, by a body and a floor that cope with abrasive material, and by a maintenance routine that is set by the conditions rather than by the calendar.

Dust and air filtration

Air filtration is the item that decides engine life on a mine site, and it is the one most often left on a schedule designed for cleaner work. In continuous dust the filter needs checking at intervals set by what the machine has been doing rather than by how long it has been owned. A restriction indicator, a clean outer filter and a pre-cleaner that is emptied rather than ignored are the difference between an engine that reaches its expected life and one that does not.

The same applies to the oil. Dust that gets past a badly seated filler or a blocked breather does as much damage as dust that gets past the filter, and on a machine working a dusty route the filler and the breather deserve the same attention as the element itself.

Abrasion: the body floor and the tyres

Rock and graded stone wear a body floor from the inside, and the wear is accelerated by a floor that is not cleaned out. A skin of material left in the body becomes a grinding paste under the next load, and within a season the floor is thinner than it was. Cleaning the body out and keeping the load moving cleanly are the two habits that slow that down. Tyres wear the same way: sharp fill and a route that is never graded will remove a set faster than hard loading does.

Steep ramps and the loaded descent

A sustained gradient turns the descent into the critical part of the cycle. The practice is to plan it before the load goes in: choose the gear on the way up, descend in low range, and let the engine and the crawler gear do the work rather than the brakes. Air cut-off brakes are fitted to the 20.Luxury, which is the configuration with the larger body and the longest haul, and oil brakes to the other three. Whichever is fitted, the driver needs to know what the machine has before the first descent.

The four configurations

The range covers a single-cylinder 25 hp on the 4.Upgraded, a single-cylinder 32 hp on the 10.Upgraded, a four-cylinder 490 on the 15.Standard and a four-cylinder 4102 turbocharged engine on the 20.Luxury. The two single-cylinder machines suit short runs and lighter duty on firm ground, or work as service machines around a larger operation. The 490 suits a full day of mixed work. The turbocharged 4102 is the one for a long haul, a sustained gradient or a machine loaded for most of the shift.

The wider engine list on the 20.Luxury

The 20.Luxury sheet also lists the alternatives that can be built on that configuration: the 4105 turbocharged and 4108 turbocharged engines, the four-cylinder 490, the 4102 turbocharged, and the single-cylinder 25 hp, 28 hp and 32 hp and the two-cylinder 38 hp units. That matters on a mine site where one machine may be replaced while others stay in service, because it allows the replacement to be specified to match the machines already working rather than to match a catalogue.

Drive arrangements and the front axle clutch

Three of the four use a full-time gearbox with four-wheel drive: the 10.Upgraded, the 15.Standard and the 4.Upgraded. The 20.Luxury uses the Model 140 part-time gearbox with four-wheel drive. The 10.Upgraded and the 4.Upgraded also have a front axle clutch, which lets the driver disengage the front axle on firm sections of the route. All four carry high and low range with a crawler gear, and low range is the gear used for a loaded descent rather than the gear used for a slow start.

Frame, body, axles and brakes

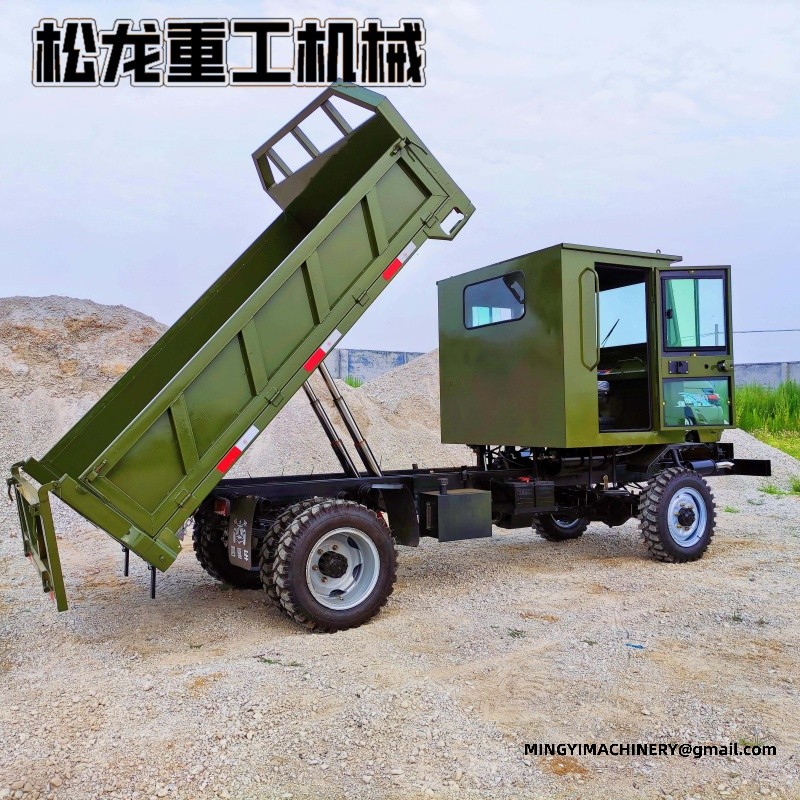

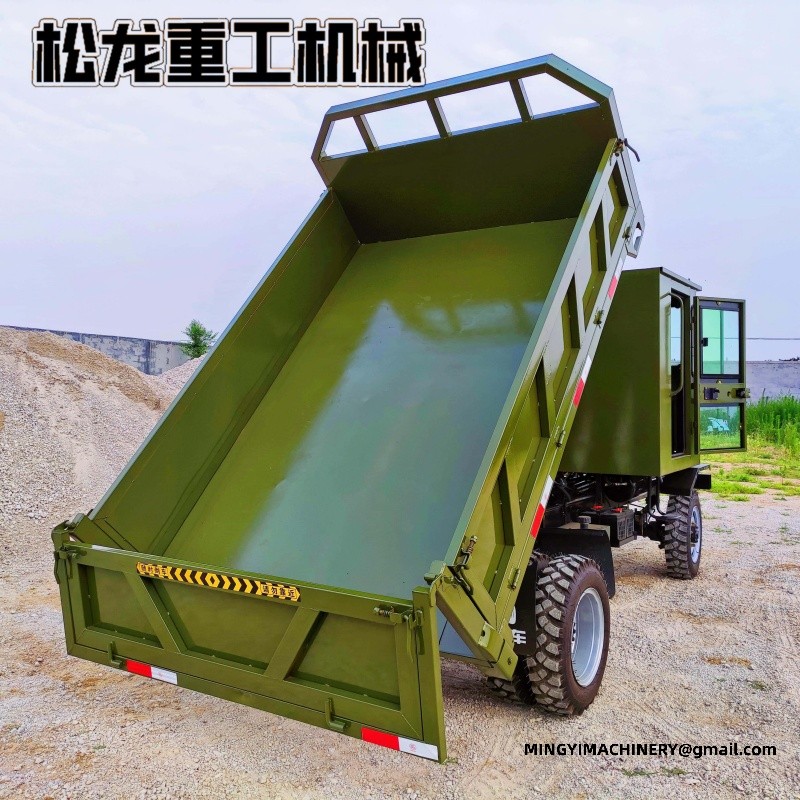

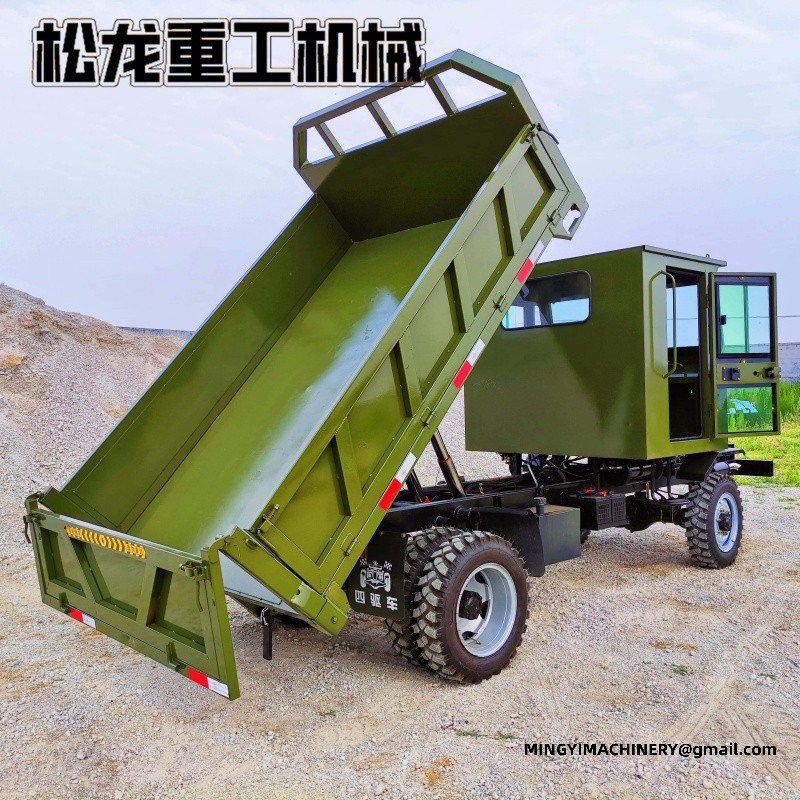

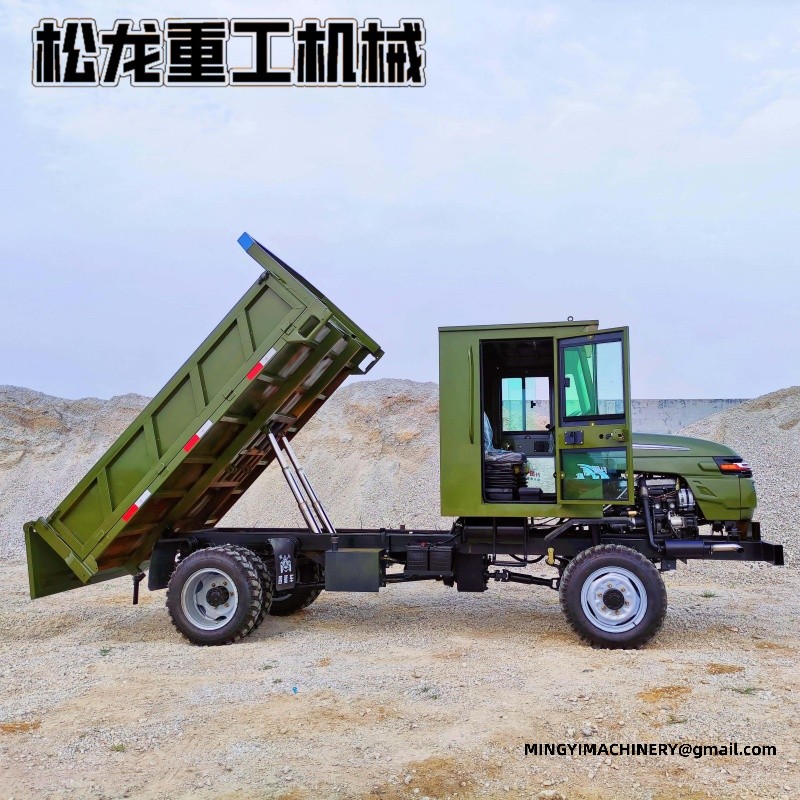

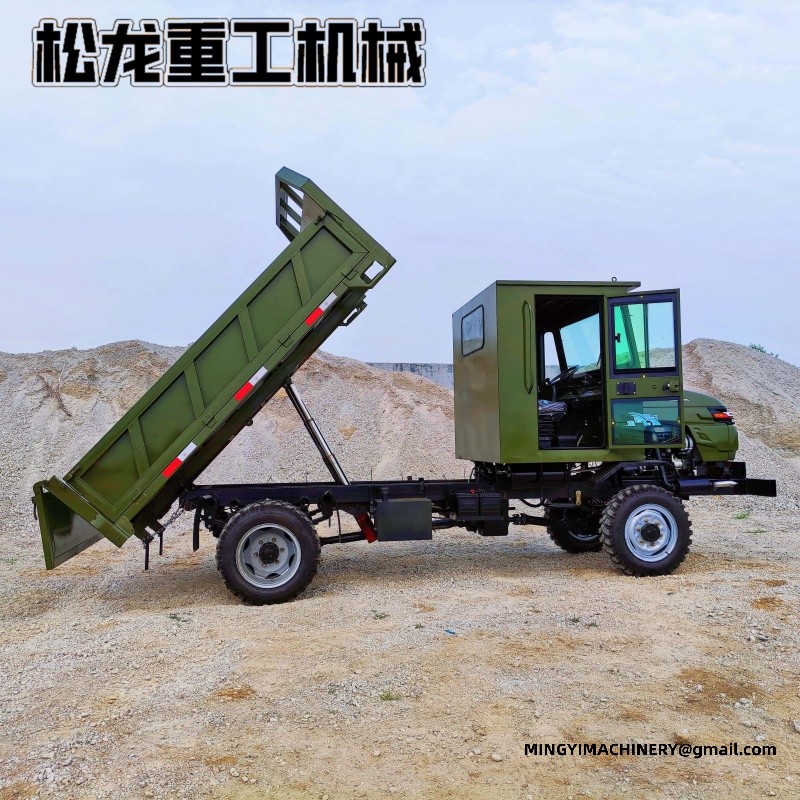

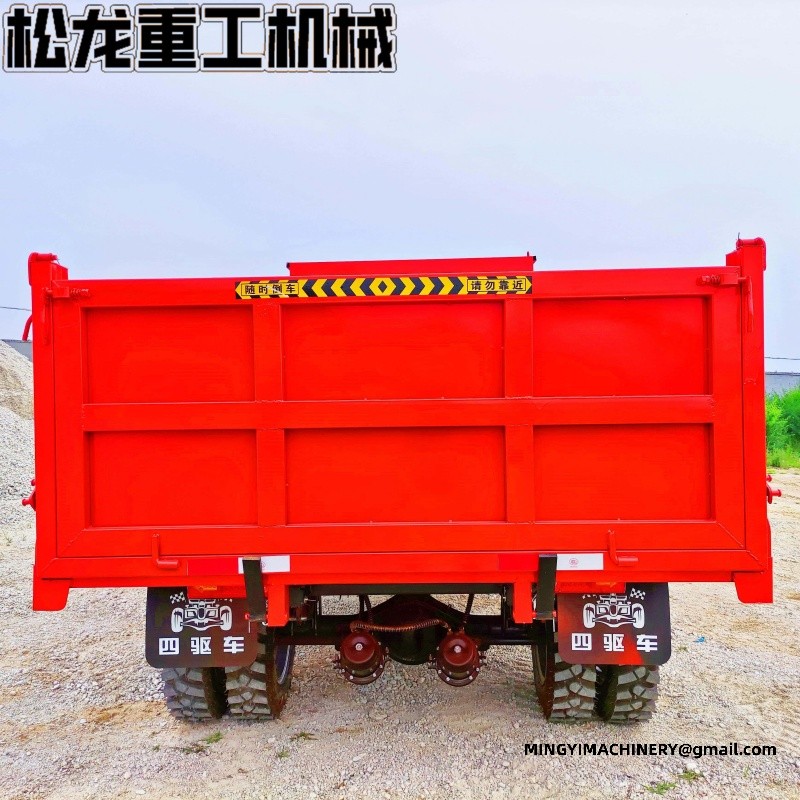

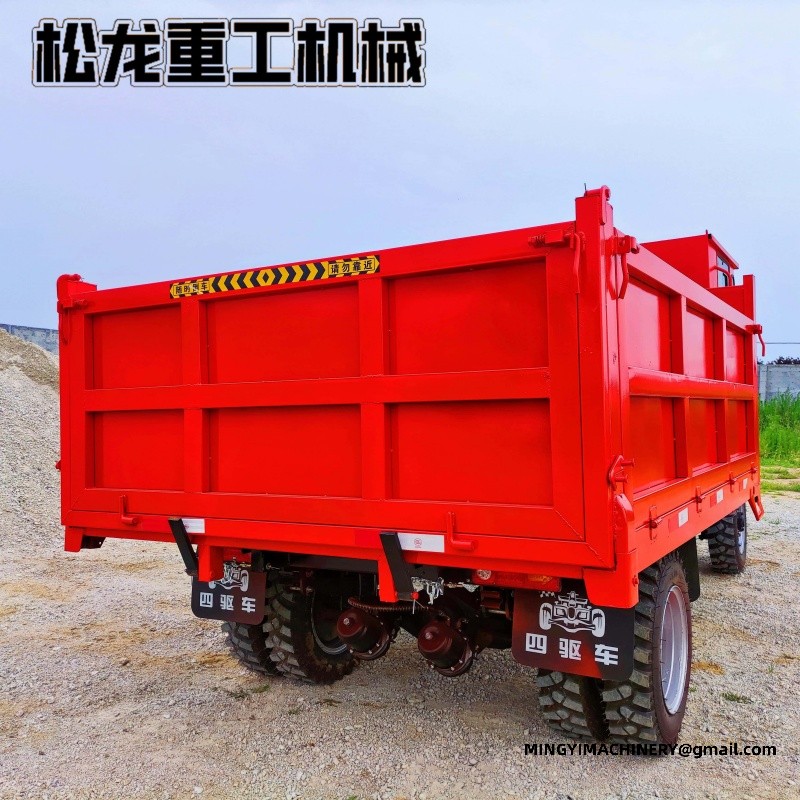

Three of the four sit on the reinforced 60 x 140 mm square tube frame with a rear body 2.2 m long by 1.5 m wide and 0.45 m high, a front axle 212 and a rear axle 130. The 20.Luxury moves to the reinforced 80 x 180 mm square tube frame with a 3.0 m by 2.2 m body of the same depth, reinforced ISUZU-pattern front axle and reinforced 1080 rear axle, and air cut-off brakes. Every configuration has a tailgate with a self-dumping function, and every body is lifted by twin hydraulic rams.

Tyres and the route surface

The 10.Upgraded, the 15.Standard and the 4.Upgraded run four 700-16 mountain tyres; the 20.Luxury runs six 825R16 steel-belted radial tyres. On a mine route the choice follows the surface: the mountain pattern clears loose material and cuts through a soft or wet surface, while the larger radial suits a haul road that is graded and drained and carries the bigger body. Six contact patches also spread the load across more ground, which is what keeps a loaded machine moving on fill.

Cab, ladder and the shift

The 10.Upgraded, the 20.Luxury and the 4.Upgraded have a fully enclosed cab and the 15.Standard a simple cab. All four carry hydraulic power steering, a two-person comfort seat and twin-battery electric start. On a shift pattern the enclosure is a productivity item: a driver who is out of the dust works more consistently in the last hour than in the first. The 20.Luxury adds a side-opening rear body tailgate with a cab ladder, which is what makes inspecting the body and the ram mountings practical on a machine that tips dozens of times a shift.

Suspension and bonnet

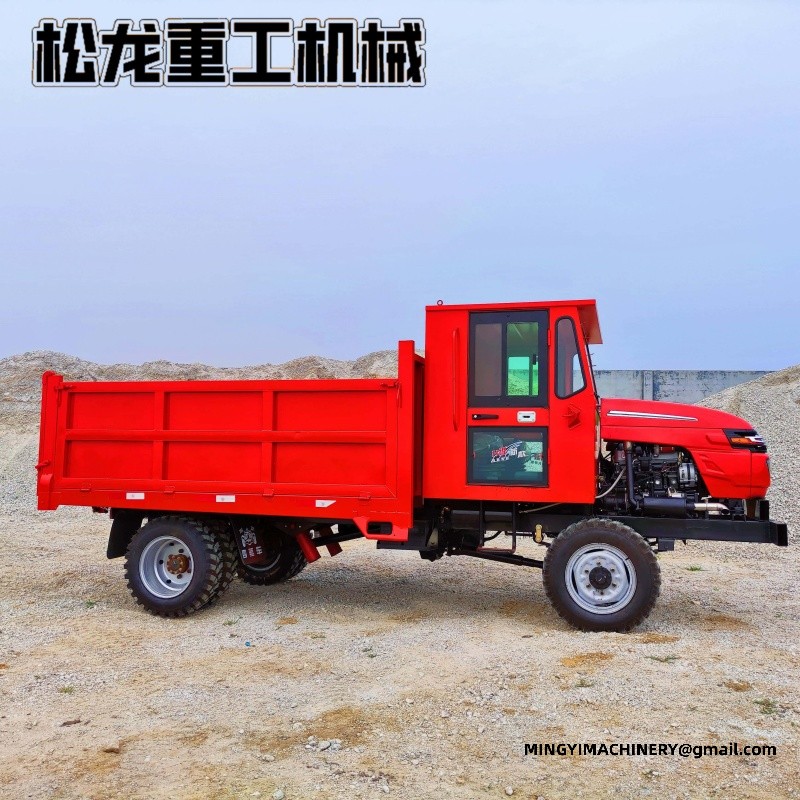

Heavy-duty thickened leaf springs are specified on the 20.Luxury, which is the machine carrying the largest body and the longest haul, and springs matter more on a mine route than on a smooth one because a loaded body landing on rock puts an impact into the frame rather than a steady weight. Bonnet shape splits as well: the 15.Standard keeps the round-nose bonnet and the other three use the square-nose, which is the panel a driver sights over when positioning at the face.

Maintenance intervals set by conditions

On this duty the service schedule should be written from the conditions rather than copied from a cleaner application. Air filtration, brake condition, body floor wear and tyre condition are the four items to shorten, and hydraulic oil condition is the fifth. Contaminated oil is what shortens the life of the pump and the rams, and a small weep found early is a hose rather than a machine out of service. A machine that tips dozens of times a shift deserves a look at the ram mountings every day.

Spares and what to stock on site

The parts worth holding at a mine site are the ones that stop a machine: filters, hoses, brake linings, mounting bushes and tyres. Which of them the local network already carries is worth establishing before the machine ships rather than during the first breakdown, because a machine built around components that network stocks is serviced from stock. Where a fault is harder to find, remote diagnosis shortens it, since a walk-around on video with the panels open usually identifies the cause without waiting for a visit.

Shipping, papers and the check before crating

Export orders add steps a domestic buyer never sees. Packed dimensions, securing points and any dismantling required are settled before the machine leaves the factory, and the commercial invoice, the packing list and any certificate the destination requires are agreed at order stage, because papers that arrive incomplete hold a consignment at the port longer than the voyage took. Before crating, each machine is run: the engine is brought to temperature, the tipping circuit is cycled under load, the brakes are tested with a load, and every function is checked against the build sheet that travels with it.

Which configuration to start from

The decision turns on the haul and the gradient. A long haul on a graded road with a sustained climb wants the 20.Luxury: the larger body, the radial tyres, the air cut-off brakes and the thickened springs. Shorter runs and service work around a site want one of the three machines on the smaller frame, and where the route alternates between firm and soft, the front axle clutch on the 10.Upgraded or the 4.Upgraded is the useful detail.

For a specification discussion or a build sheet for this off road mining dumper, contact sales@mingycn.com or reach us on LINE (ID: mingyicn).
