Choosing the dumper usually comes down to a handful of decisions made early: size, power, the ground it will work on and the attachments it has to carry. The notes below follow that order, because each one narrows the next.

Parts, service and support for site dumper 4x4

Support after delivery is a parts question. Filters, belts, hoses and the wearing items specific to this class of machine are what a buyer should plan to hold before the first service interval rather than order after a failure. Remote diagnosis shortens most faults. A walk-around on video with the panels open often identifies the cause on the unit in daily use without waiting for a visit, and avoids shipping a part that turns out not to be needed.

Warranty, commissioning and early checks

Commissioning is the point where most avoidable issues are found. Checking levels, fasteners and function on a machine of this size before it goes to work takes an hour and prevents a claim conversation later.

Upgrading and reconfiguring site dumper 4x4

Reconfiguration can extend the useful life of a machine. The equipment on site that no longer suits the current work may suit it again with a different attachment, guarding or control arrangement. Upgrades should be checked against the base machine. Hydraulic capacity, mounting interface and stability all limit what can reasonably be added to the machine itself, and confirming those limits avoids an unsatisfactory result.

Attachments and working tools for site dumper 4x4

Attachment decisions are best made before delivery. Specifying hydraulics and couplers at build time is simpler than adding them later, and it avoids the downtime of a workshop visit in the first month.

Matching site dumper 4x4 to ground conditions

Ground decides more of the outcome than power does. Soft, wet or loose surfaces call for a wider footprint and lower ground pressure, while hard standing allows a narrower machine that turns in less space and travels faster between tasks. The working surface should be surveyed before the model in question is specified. A machine that is stable on compacted gravel can be unusable on the same site after rain, and the difference shows up as lost days rather than as a fault.

Ordering, lead time and delivery of site dumper 4x4

Lead time is part of the specification. Confirming build time, shipping method and what is included before ordering the machine in that duty prevents the common gap between when the machine is needed and when it can arrive.

Working hours and duty cycle of site dumper 4x4

Duty cycle is the honest measure of a machine. The unit on the job working a few hours a week has different needs from one working two shifts, and the cooling, filtration and service intervals should follow the hours rather than the calendar. Seasonal work changes the maintenance calendar. Machines that work hard for two months and stand for ten need preparation before storage and a check before returning to work, and both are simpler than the repairs they prevent. Hour planning helps at resale as well. A machine built for the work with a recorded service history and a sensible hour count is easier to sell than one with the same hours and no records, whatever its condition.

Crane and grab attachments on site dumper 4x4

A crane or grab turns a haul vehicle into a loading machine. The equipment in service fitted with a hydraulic crane loads itself, which removes a second machine from the job and is often the whole reason for specifying one.

Resale value and replacement planning

Resale starts at purchase. Specification choices, service records and the condition of wearing parts are what a buyer looks at, and the dumper that has been maintained on schedule is worth more than one that merely looks clean.

Load, ballast and stability on this class of machine

Carrying and travelling with a load needs its own plan. Speed, gradient and surface all matter more once the unit in daily use is loaded, and the safe combination is the conservative one.

Storage and downtime care for a machine of this size

A periodic start is better than none. Running the equipment on site to operating temperature during a long layoff keeps seals and the charging system in better condition than leaving it untouched until the next job.

Payload and how the machine itself is loaded

Payload is limited by the axles and the frame before it is limited by the body volume. Specifying the model in question against the material density gives a realistic figure, because a body that looks half full can already be at its limit with rock. Loading method affects the machine as much as the load does. Material dropped from height into the machine in that duty shocks the frame and the body floor, while material placed evenly spreads the load and extends body life.

Gradient and climbing ability of the unit on the job

Gradient is where a haul vehicle earns its keep. A machine built for the work with a crawler gear and a low range climbs loaded where a road vehicle would need a second attempt, and that difference decides whether a track is usable at all.

Running the equipment in service in a mixed fleet

Utilisation matters more than the purchase decision over a few years. The dumper that sits idle ties up the same yard space standing still as one that earns, so the buying decision should follow the hours the machine will realistically work.

Dust, mud and abrasive conditions around this class of machine

Sealed points and guarded areas deserve a look in these conditions. The unit in daily use working in abrasive dust benefits from checked boots, intact guards and clean breathers, all of which are quick to verify.

Cold weather and low temperature work with a machine of this size

Cold changes how a machine starts and how it warms up. Allowing the equipment on site to reach operating temperature before loading it, and using the correct grade of oil and fuel for the season, prevents most cold-start problems. Low temperatures also make materials behave differently. Ground that is frozen hard in the morning can be soft by midday, and planning the sequence around that is easier than fighting it with the machine itself.

Water tank and dust control bodies on the model in question

A water tank turns the vehicle into a different machine. The machine in that duty carrying water for dust control or irrigation is specified around tank size, baffles and the route, because a part-filled tank behaves very differently on a slope. Water is heavy and it moves. Baffles and sensible speeds matter on the unit on the job with a tank body, and the specification should reflect the ground the vehicle will cross rather than only the volume needed. Dust control work is repetitive and time-critical. A machine built for the work with the right tank and spray arrangement covers more ground per shift, which is usually the point of the exercise.

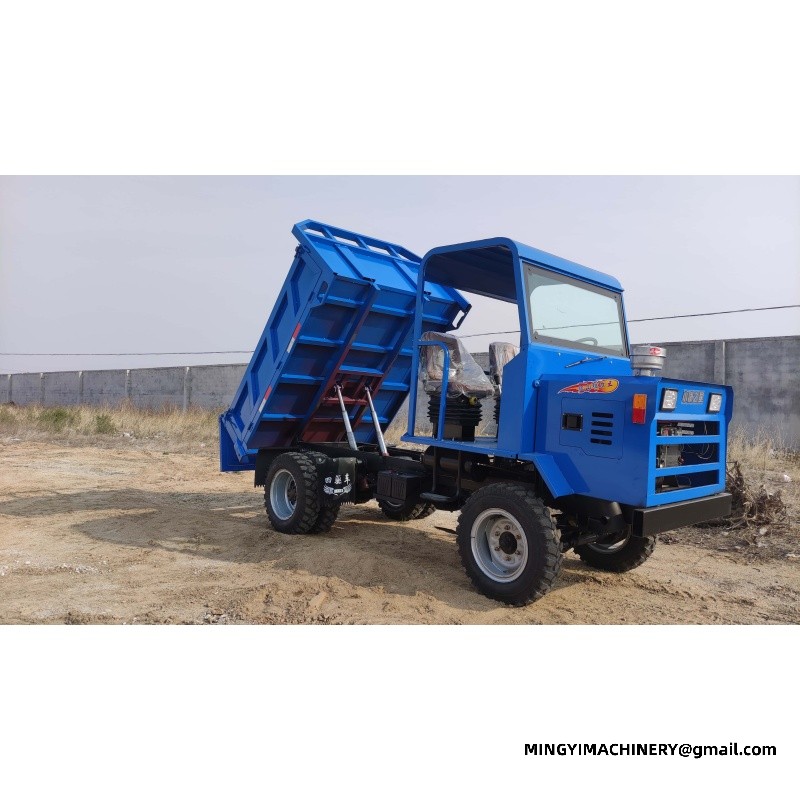

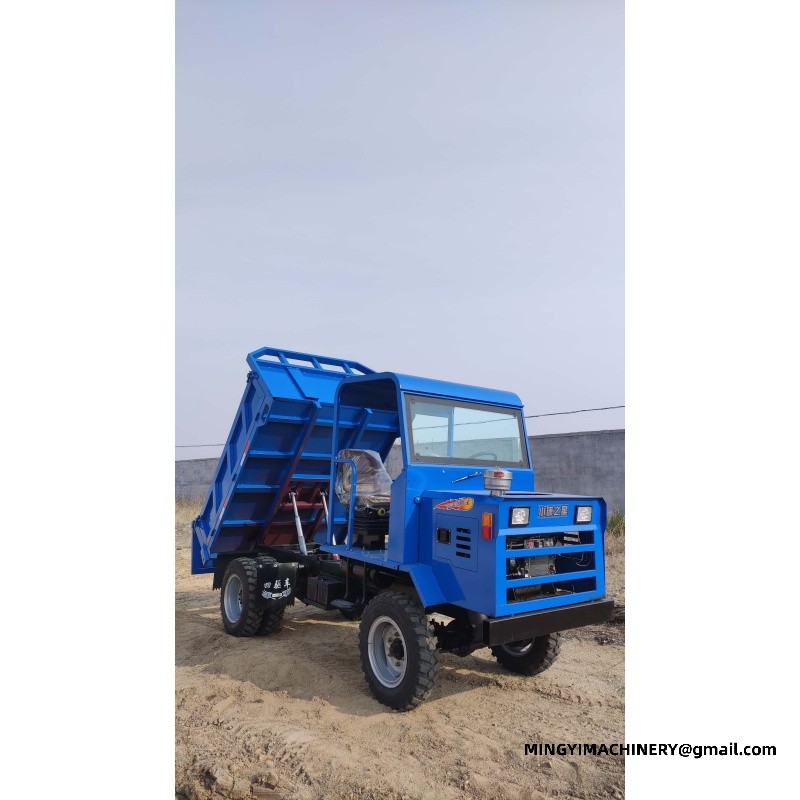

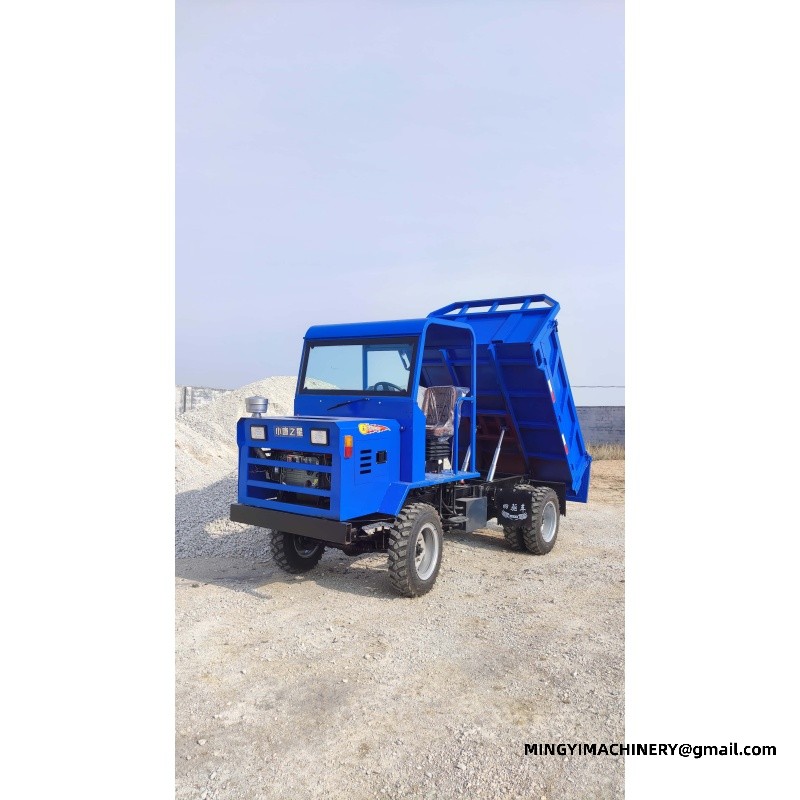

Tipping body and unloading on the equipment in service

Body size is a compromise with access. A larger body on the dumper carries more per trip but needs more room to turn and tip, so the useful question is how many trips the route allows rather than how much it holds.

Quarry, tunnel and mining duty for this class of machine

Size matters underground. Overall height and width decide whether the unit in daily use can work in a tunnel at all, and those dimensions are the first thing to confirm rather than the last. Haul cycles in a quarry are short and repetitive. A machine of this size specified for that pattern benefits from a body that dumps cleanly and quickly, because the time saved per cycle is the whole allowance.

Configuration data for the equipment on site

The configurations below are the build sheets most often matched to the machine itself. Engine, gearbox, axles, frame and body dimensions are confirmed together, because the body size and the axle rating have to suit the load before the engine rating matters.

#	11.Luxury	15.Standard	22.Luxury	5.Luxury
1	Single-cylinder diesel engine, 32 hp	Four-cylinder 490 diesel engine	Four-cylinder 4105 turbocharged diesel engine	Single-cylinder diesel engine, 25 hp
2	Part-time gearbox, selectable 2WD/4WD	Full-time gearbox with four-wheel drive	Model 145 part-time gearbox with four-wheel drive	Part-time gearbox with four-wheel drive
3	High/low range with crawler gear	High/low range with crawler gear	High/low range with crawler gear	High/low range with crawler gear
4	Enclosed cab	Simple cab	Fully enclosed cab	Enclosed cab
5	Six 700-16 mountain tyres	Oil brakes	Six 825R16 steel-belted radial tyres	Six 700-16 mountain tyres
6	Model 212 front axle	Four 700-16 mountain tyres	Reinforced ISUZU-pattern front axle	Model 212 front axle
7	Model 130 rear axle	Front axle 212	Reinforced 1080 rear axle	Model 130 rear axle
8	Air cut-off brakes	Rear axle 130	Air cut-off brakes	Air cut-off brakes
9	Reinforced 60 x 140 mm square tube frame	Reinforced 60 x 140 mm square tube frame	Reinforced 80 x 180 mm square tube frame	Reinforced 60 x 140 mm square tube frame
10	Rear body 2.2 m long x 1.5 m wide x 0.45 m high	Rear body 2.2 m long x 1.5 m wide x 0.45 m high	Rear body 3.0 m long x 2.2 m wide x 0.45 m high	Rear body 2.2 m long x 1.5 m wide x 0.45 m high
11	Tailgate with self-dumping function	Tailgate with self-dumping function	Tailgate with self-dumping function	Tailgate with self-dumping function
12	Side-opening rear body tailgate	Hydraulic power steering	Side-opening rear body tailgate with cab ladder	Side-opening rear body tailgate
13	Hydraulic power steering	Twin hydraulic rams	Hydraulic power steering	Hydraulic power steering
14	Twin hydraulic rams	Two-person comfort seat	Twin hydraulic rams	Twin hydraulic rams
15	Two-person comfort seat	Twin-battery electric start	Two-person comfort seat	Two-person comfort seat
16	Heavy-duty leaf springs	Round-nose bonnet	Heavy-duty leaf springs	Heavy-duty leaf springs
17	Twin-battery electric start	—	Twin-battery electric start	Twin-battery electric start
18	Square-nose bonnet	—	Square-nose bonnet	Square-nose bonnet

Keeping a service record for the model in question

A written record is worth more than a good memory. Dates, hours and the parts fitted on the machine in that duty turn a guess about the next service into a fact, and they are the first thing a buyer asks to see.

Hot, humid and dusty conditions around the unit on the job

Dust is the enemy of every rotating joint. Keeping the radiator and the air intake of a machine built for the work clean, and cleaning them before they are blocked rather than after, is what separates a machine that lasts from one that overheats.

Wear items and spares worth holding for the equipment in service

Wear items are predictable once the machine has settled in. After the first service interval the pattern on the dumper is visible, and the parts that were replaced become the parts that are kept.

Documents that travel with this class of machine

The machine is only half of what arrives. The parts book, the service schedule and the declarations that come with the unit in daily use are what let the owner register, insure and maintain it without a second round of emails.

Storage and long idle periods for a machine of this size

A stored machine should be brought back carefully. Before the equipment on site returns to work the fluids, the brakes and the controls are checked, because months of standing change more than a weekend does.

A second operator for the machine itself

A machine that only one person can use is a single point of failure. Training a second operator on the model in question takes a day and removes the dependency that otherwise governs holidays, illness and busy weeks.

Fuel, oil and fluid quality for the machine in that duty

Most engine trouble starts with what went into the tank. Clean fuel, stored properly and filtered before it reaches the unit on the job, prevents more downtime than any other single habit an owner can adopt.

Packing, loading and shipment of a machine built for the work

How a machine travels decides how it starts on arrival. Securing the equipment in service against movement, protecting the exposed cylinders and keeping the battery and fluids in the right state for the voyage all belong to the packing list.

Commissioning the dumper on site

The first hour on site should be slow. Before this class of machine is put to work the fluid levels are rechecked after transport, the fasteners are gone over and the machine is run light so that anything loosened in transit shows up early.

Every line above is a build item rather than an optional extra, and the final sheet for the unit in daily use is confirmed against the destination, the ground and the load before production.
