The specification of the dumper is only half the picture. The other half is how it behaves on a working day: how it starts cold, how it copes with dust, how long a service takes and how it travels between sites. Both halves are covered below.
Safe working practice around small farm dumper
Most incidents around machinery come from the space rather than the machine. Exclusion zones, a clear signal person and a check on what is behind the class of machine before it moves cover the large majority of the risk on a working site.
Customisation and build options for small farm dumper
Build options are where a standard machine becomes the right machine. Colour, guarding, lighting, seating and hydraulic provisions can usually be set at build time on the unit in daily use, and are far simpler then than as a retrofit. Customisation should still be limited to what the work needs. Each addition to a machine of this size is another item to maintain, so the useful question is not what can be added but what the job list actually requires.
Transporting small farm dumper to and between sites
Shipping dimensions matter as much on export orders as they do locally. Confirming the packed size of the equipment on site before booking avoids re-booking freight after the machine is built.

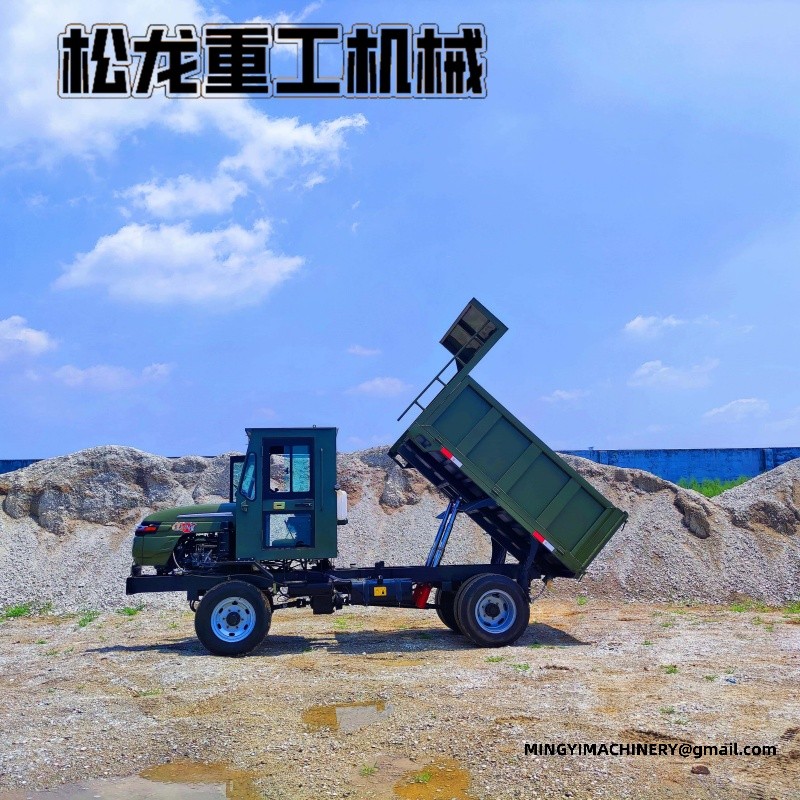

Tipping body and unloading on small farm dumper
Unloading method should follow the material. Wet spoil, aggregate and green timber behave differently in the body, and matching the body and tailgate arrangement to the load is what keeps the machine itself cycling rather than being hand-cleared. Body size is a compromise with access. A larger body on the model in question carries more per trip but needs more room to turn and tip, so the useful question is how many trips the route allows rather than how much it holds.
Forestry and timber work with small farm dumper
Timber work changes what the vehicle carries. The machine in that duty fitted with a log grab loads and unloads without a second machine, which is usually the reason a forestry contractor specifies one over a conventional truck.
Ordering, lead time and delivery of small farm dumper
Lead time is part of the specification. Confirming build time, shipping method and what is included before ordering the unit on the job prevents the common gap between when the machine is needed and when it can arrive. Delivery planning includes the receiving end. Knowing whether a machine built for the work will be craned, driven or forked off, and whether the site can accept it, is settled before dispatch rather than on the day.
Fuel use and running demands of small farm dumper
Fuel is usually the largest controllable running demand. Operating style, correct tyre or track condition and a clean air supply all move consumption on the equipment in service by more than most buyers expect. Planning the work to reduce empty movement is free. Fewer repositioning cycles on the dumper means less fuel, less wear on the undercarriage or tyres and more of the shift spent on productive work.
Fitting small farm dumper into the wider site plan
Access and storage are worth settling early. Where this class of machine will be parked, refuelled and serviced on site affects the working day more than most specification details, and it takes nothing to plan. Sequencing avoids rework. Doing the work in the order that suits the ground and the following trades keeps the unit in daily use productive and prevents finishing a task that then has to be opened up again.
Lighting and low light operation of a machine of this size
Planning helps more than extra lamps. Positioning the equipment on site so that the work is lit from the machine side, and keeping the route clear, does more for safety than adding light to a badly planned task.
Cold weather and low temperature work with the machine itself
Batteries and fluids are the parts that notice the cold first. The model in question kept on a maintainer through a freezing spell starts on the first turn, while one left standing is the usual cause of a lost morning.
Export packing and shipping of the machine in that duty
Export orders add steps that domestic buyers never see. Packed dimensions, securing points, documentation and any dismantling required are all settled before the unit on the job leaves the factory, and each one affects the freight booking.
Payload and how a machine built for the work is loaded
Loading method affects the machine as much as the load does. Material dropped from height into the equipment in service shocks the frame and the body floor, while material placed evenly spreads the load and extends body life.
Water tank and dust control bodies on the dumper
A water tank turns the vehicle into a different machine. This class of machine carrying water for dust control or irrigation is specified around tank size, baffles and the route, because a part-filled tank behaves very differently on a slope. Dust control work is repetitive and time-critical. The unit in daily use with the right tank and spray arrangement covers more ground per shift, which is usually the point of the exercise.
Handover and documentation for a machine of this size
Keeping the manuals where they can be reached matters. The equipment on site whose documents stay with the machine gets serviced on schedule; one whose paperwork was filed elsewhere tends to run on memory instead.
Specifying the machine itself against the job list
Buyers who specify the model in question on paper before enquiring get specifications that can be compared. Without that list, two suppliers will propose two different machines and the simpler one is usually the smaller one, not the better value.
Soft ground, paddy fields and mud with the machine in that duty
Four-wheel drive is only part of soft ground capability. Tyre choice, ground clearance and weight distribution decide whether the unit on the job keeps moving in a paddy field or a marsh, and all three are specified rather than assumed. Soft ground punishes the wrong tyre. Mountain pattern tyres on a machine built for the work clear mud that a road pattern would pack with, and the difference is measured in whether the machine finishes the day.
Load, ballast and stability on the equipment in service
Stability follows the load and its position. Knowing the rated capacity of the dumper at the working radius, rather than at its best case, is what keeps handling predictable and the machine upright.
Resale value and replacement planning
Resale starts at purchase. Specification choices, service records and the condition of wearing parts are what a buyer looks at, and this class of machine that has been maintained on schedule is worth more than one that merely looks clean. Replacement timing is a planning decision. Knowing the intended working life of the unit in daily use lets an owner sell while the machine still has value rather than after a major repair becomes due. Records are part of the asset. Keeping the service history and the hour records with a machine of this size makes it easier to sell, easier to insure and easier to justify the replacement machine internally.
Configuration data for the equipment on site
The configurations below are the build sheets most often matched to the machine itself. Engine, gearbox, axles, frame and body dimensions are confirmed together, because the body size and the axle rating have to suit the load before the engine rating matters.
| # | 12.Standard | 20.Luxury | 22.Luxury | 8.Luxury |
|---|---|---|---|---|
| 1 | Two-cylinder diesel engine, 38 hp | Four-cylinder 4102 turbocharged diesel engine | Four-cylinder 4105 turbocharged diesel engine | Single-cylinder diesel engine, 28 hp |
| 2 | Full-time gearbox with four-wheel drive | Model 140 part-time gearbox with four-wheel drive | Model 145 part-time gearbox with four-wheel drive | Part-time gearbox, selectable 2WD/4WD |
| 3 | High/low range with crawler gear | High/low range with crawler gear | High/low range with crawler gear | High/low range with crawler gear |
| 4 | Simple cab | Fully enclosed cab | Fully enclosed cab | Enclosed cab |
| 5 | Oil brakes | Six 825R16 steel-belted radial tyres | Six 825R16 steel-belted radial tyres | Six 700-16 mountain tyres |
| 6 | Four 700-16 mountain tyres | Reinforced ISUZU-pattern front axle | Reinforced ISUZU-pattern front axle | Model 212 front axle |
| 7 | Front axle 212 | Reinforced 1080 rear axle | Reinforced 1080 rear axle | Model 130 rear axle |
| 8 | Rear axle 130 | Air cut-off brakes | Air cut-off brakes | Air cut-off brakes |
| 9 | Reinforced 60 x 140 mm square tube frame | Reinforced 80 x 180 mm square tube frame | Reinforced 80 x 180 mm square tube frame | Reinforced 60 x 140 mm square tube frame |
| 10 | Rear body 2.2 m long x 1.5 m wide x 0.45 m high | Rear body 3.0 m long x 2.2 m wide x 0.45 m high | Rear body 3.0 m long x 2.2 m wide x 0.45 m high | Rear body 2.2 m long x 1.5 m wide x 0.45 m high |
| 11 | Tailgate with self-dumping function | Tailgate with self-dumping function | Tailgate with self-dumping function | Tailgate with self-dumping function |
| 12 | Hydraulic power steering | Side-opening rear body tailgate with cab ladder | Side-opening rear body tailgate with cab ladder | Side-opening rear body tailgate |
| 13 | Twin hydraulic rams | Hydraulic power steering | Hydraulic power steering | Hydraulic power steering |
| 14 | Two-person comfort seat | Twin hydraulic rams | Twin hydraulic rams | Twin hydraulic rams |
| 15 | Twin-battery electric start | Two-person comfort seat | Two-person comfort seat | Two-person comfort seat |
| 16 | Round-nose bonnet | Heavy-duty thickened leaf springs | Heavy-duty leaf springs | Heavy-duty leaf springs |
| 17 | — | Twin-battery electric start | Twin-battery electric start | Twin-battery electric start |
| 18 | — | Square-nose bonnet | Square-nose bonnet | Square-nose bonnet |
| 19 | — | Four-cylinder 4105 turbocharged | — | — |
| 20 | — | Four-cylinder 4108 turbocharged | — | — |
| 21 | — | Single-cylinder engine, 25 hp | — | — |
| 22 | — | Single-cylinder engine, 28 hp | — | — |
| 23 | — | Single-cylinder engine, 32 hp | — | — |
| 24 | — | Two-cylinder engine, 38 hp | — | — |
| 25 | — | Four-cylinder 490 engine | — | — |
| 26 | — | Four-cylinder 4102 turbocharged engine | — | — |
Handover and getting familiar with the model in question
Operators who come from a different machine need a short conversion. The controls on the machine in that duty follow the usual pattern, but the response, the sightlines and the stopping distance are learned by doing rather than by reading.
Reading the early symptoms on the unit on the job
Operators notice things first because they hear the machine every day. Encouraging the person on a machine built for the work to report small changes, and acting on them, is the most effective maintenance programme there is.
Storage and long idle periods for the equipment in service
A stored machine should be brought back carefully. Before the dumper returns to work the fluids, the brakes and the controls are checked, because months of standing change more than a weekend does.
Later additions and retrofits on this class of machine
Most additions are easier to plan than to add. Hydraulic services, mounting brackets and electrical capacity on the unit in daily use are build items, and deciding them at the specification stage is far easier than doing it later.
Fuel, oil and fluid quality for a machine of this size
Most engine trouble starts with what went into the tank. Clean fuel, stored properly and filtered before it reaches the equipment on site, prevents more downtime than any other single habit an owner can adopt.
Keeping a service record for the machine itself
Patterns show up in the record before they show up in the machine. Rising oil consumption or a filter that keeps blocking on the model in question is obvious on paper long before it becomes a failure on site.
Moving the machine in that duty between sites
Securing the load is not optional. Lashing the unit on the job at the points intended for it, checking the tension before the vehicle moves and rechecking after the first kilometres is standard practice rather than extra care.
Cold weather and winter care for a machine built for the work
A cold start is easier when the machine is prepared the night before. The routine that keeps the equipment in service working through winter is mostly a matter of fuel, battery and patience in the first ten minutes of the day.
Wear items and spares worth holding for the dumper
The parts that stop a machine are rarely the parts that are hardest to find. Filters, belts, seals and the ground engaging tools on this class of machine are easy to hold and slow to replace, which is why they belong on the shelf rather than on an order.
Hot, humid and dusty conditions around the unit in daily use
Dust is the enemy of every rotating joint. Keeping the radiator and the air intake of a machine of this size clean, and cleaning them before they are blocked rather than after, is what separates a machine that lasts from one that overheats.
Every line above is a build item rather than an optional extra, and the final sheet for the equipment on site is confirmed against the destination, the ground and the load before production.
