A china front tipping dumper factory supplier earns its place by completing a cycle that other machines cannot. Load from a heap, drive a short distance, tip forward over the front axle, return the box hydraulically, drive away — no reversing manoeuvre, no ramp. The published figures that make that possible are 390 mm discharge height, 4,500 mm turning radius and 1,500 mm of track.
Keep the specification table with the machine. The four figures a second owner will ask for — 1,000 kg of load, 0.5 m³ of box, 390 mm of discharge height and 4,500 mm of turning radius — are all measurable on the machine itself, which makes a used FC10 easy to verify on a water conservancy project.
The engine figures are worth recording too: CG25M at 17.3 kW and 2,200 r/min, starting on 12 V DC electric motor. Between the two sets, an owner has everything needed to order parts, compare a replacement and answer an enquiry without going back to the manufacturer.
A front tipper is a short-distance machine, and the distances it suits are the ones on a water conservancy project moving earth away from the working face — tens and hundreds of metres, not kilometres. At 22 km/h empty and 6.8 km/h loaded, the economics work by cycle count, and the 1,000 kg load is sized so cycles stay frequent.
Water conservancy project work is usually a chain of such distances: stockpile to mixer, excavation to spoil, store to working face. The FC10's value is that it completes each link without a reversing manoeuvre, at 4,500 mm turning radius, on ground that would stop a larger truck.
The published 2,700 x 1,600 x 2,000 is what an operator needs for a permit or an access survey. It is also what a transport company needs to specification. Having the figure to hand shortens a surprising number of conversations, from a site induction to a plant-hire agreement.
The same applies to the machine's working envelope. A 4,500 mm turning radius and a 1,000 kg payload are the two figures that most often decide whether a machine may work a particular part of a site.
| Reference specification — FC10 front tipper (1,000 kg class) | |
|---|---|
| Rated load | 1,000 kg |
| Rated bucket capacity | 0.5 m³ |
| Discharge height | 390 mm |
| Maximum gradeability | 21% |
| Bucket width | 1,580 mm |
| Travel speed, 1st gear | 6.8 km/h |
| Travel speed, 2nd gear | 22 km/h |
| Travel speed, reverse | 7.5 km/h |
| Minimum turning radius | 4,500 mm |
| Overall dimensions (L x W x H) | 2,700 x 1,600 x 2,000 |
| Track | 1,500 mm |
| Wheelbase | 1,230 mm |
| Minimum ground clearance | 200 mm |
| Diesel engine model | CG25M |
| Rated engine power | 17.3 kW |
| Rated engine speed | 2,200 r/min |
| Starting method | 12 V DC electric motor |
Discharge is by gravity through hydraulic tipping, and the box returns under hydraulic power as well; the FC10 also carries a dedicated bucket return device. Discharge height is published at 390 mm, which is the figure to check against whatever receives the load on a water conservancy project.
Water conservancy project work rarely offers a purpose-built ramp, so the 390 mm discharge height has to clear a heap, a trench edge or a skip. Because the box tips forward over the front axle, the load leaves cleanly at low height and the machine does not need to reverse up a ramp to empty — which is most of the reason the cycle works in tight spaces.

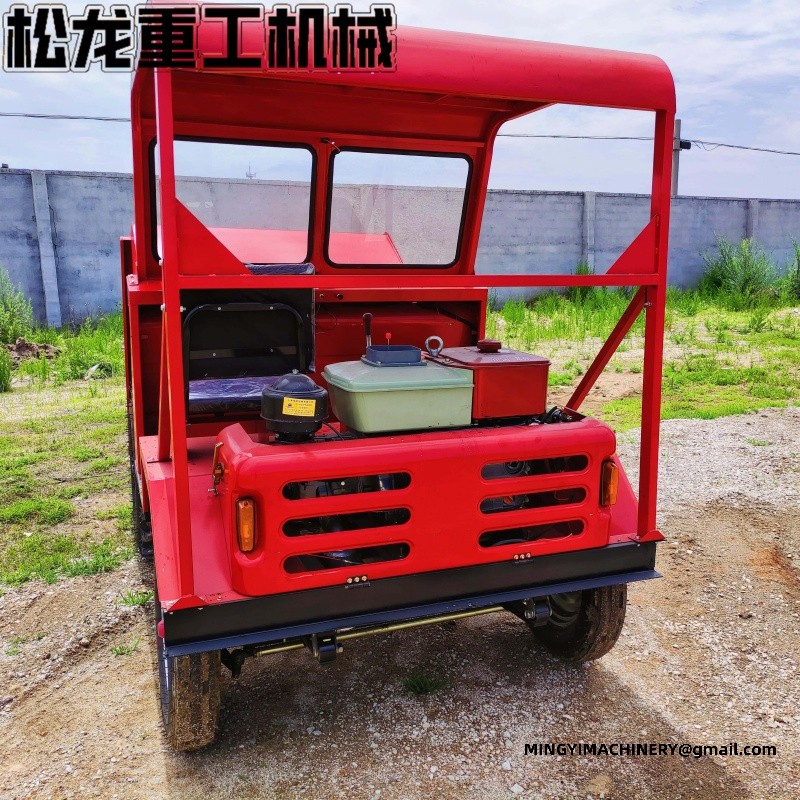

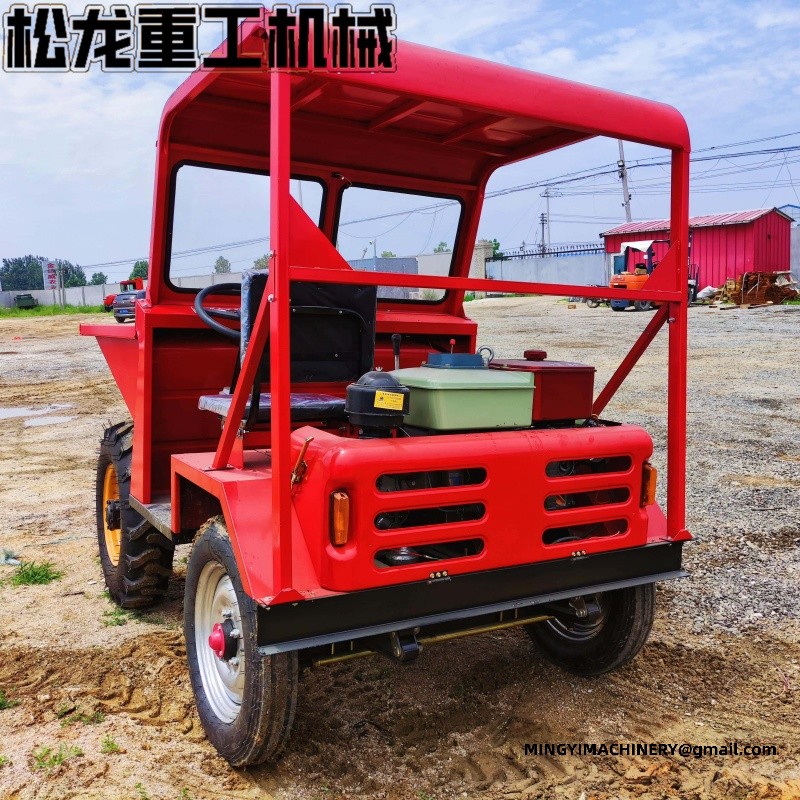

Maintenance on the FC10 is deliberately simple: rear-mounted CG25M diesel, mechanical driveline, hydraulic tipping circuit. on a water conservancy project moving earth away from the working face, the machine works short cycles all day, and the daily checks — oil, coolant, tyre condition, grease points — take minutes rather than a workshop visit.
The layout helps: the engine sits at the rear away from the load, the tipping hydraulics are exposed, and the 1,230 mm wheelbase keeps everything within reach of the ground. Machines specified for sites are specified for field maintenance, and this one is no exception.
The FC10 is published at 1,000 kg rated load and 0.5 m³ rated bucket capacity, and those two figures are worth reading together rather than separately. Carrying earthwork, the box fills by volume long before the weight limit is reached, while denser material reaches the weight figure first, on a water conservancy project. Which of the two governs is decided by what you load, not by the machine.
For a site doing short runs on a water conservancy project, the practical question is how much arrives per hour, and that is load divided by cycle time. The 0.5 m³ box at 1,000 kg is sized so that neither figure is wasted: the machine is not carrying a half-empty box on light material, and it is not overloaded on dense material. That balance is what the two published numbers describe.
A tipper is at its least stable with the box up, and the FC10 tips forward, so the raised box hangs over the front axle rather than behind the machine. Emptying ahead of the machine, from a discharge height of 390 mm, keeps the raised load inside the footprint of the machine's own length.
The practical rules follow from that: tip on level ground, never travel with the box raised, and keep people out of the discharge zone ahead of the machine. None of this is specific to the FC10; it is simply what a forward-tipping machine asks of its operator.
Steering at the rear takes a shift or two to get used to and then feels natural: the rear of the machine cuts inside the front's path, which is why the 4,500 mm turning radius is achievable on a 1,230 mm wheelbase. on a water conservancy project moving earth away from the working face, that radius is usually the difference between working through a gateway and having to reverse every pass.
Because the front axle drives and the rear steers, the driven wheels stay on the load path while the steering wheels follow. On loose or soft ground on a water conservancy project moving earth away from the working face that is the better arrangement: traction where the weight is, steering where the weight is not.
The FC10 publishes three road speeds: 6.8 km/h in first, 22 km/h in second and 7.5 km/h in reverse. First gear is the working gear — full load, short cycle, on a water conservancy project moving earth away from the working face. Second is for the empty return leg and for longer moves between working areas.
Reverse at 7.5 km/h is deliberately close to first gear, because on a site the reverse movement is part of the cycle rather than an exception. A machine that reverses slowly wastes more time than one that loads slowly, and the published gearing reflects how the machine is actually used on a water conservancy project moving earth away from the working face.
1,000 kg of earthwork sitting ahead of the front axle is what makes a front tipper work: the weight is on the driven wheels, so traction arrives when the load does. The rear-mounted CG25M balances it, which is why the machine does not need ballast.
The published 1,230 mm wheelbase keeps that weight transfer manageable on ramps of up to 21%. Put the same load on a machine with a longer wheelbase and the front axle carries it differently; put it on a shorter one and the machine pitches. The FC10's 1,230 mm and 1,500 mm are matched to the 1,000 kg it is rated for.
At 2,700 x 1,600 x 2,000 the FC10 is small enough to be moved without a low-loader, which is one of its less obvious advantages. A machine that can be carried on a standard trailer behind a light truck changes how a contractor deploys it between jobs.
The same dimensions, seen from the other side, decide whether it fits through the gateway on a water conservancy project. On a water conservancy project the first question is always access, and a machine that is 2,700 x 1,600 x 2,000 with a 4,500 mm turning radius answers it before any conversation about capacity begins.
How is a china front tipping dumper factory supplier loaded from a stockpile?
From the front, from the side by hand, or from a hopper. A 1,580 mm box on a 2,700 x 1,600 x 2,000 machine is wide enough to load from a heap without precise positioning, which saves time on every cycle on a water conservancy project.
What is the fuel and starting arrangement on a china front tipping dumper factory supplier?
A CG25M diesel started by 12 V DC electric motor. Rear-mounted, which keeps the service points clear of the load and supports the stop-start pattern of site work where the engine is shut down between runs.
What is the difference between the FC10 and a mini dumper?
Largely a naming convention. The FC10 is a 1,000 kg front-tipping machine with a 0.5 m³ box, described in the published table as suitable for short-distance movement of loose material; that is what the term mini dumper covers.
What spare parts are specific to a china front tipping dumper factory supplier?
The tipping circuit and the box. The CG25M diesel, the driveline and the running gear are standard items, and the specification table carries the figures a parts enquiry needs: 1,000 kg, 17.3 kW and 0.5 m³.
What makes the china front tipping dumper factory supplier suitable for construction work?
The combination of 1,000 kg of load, 390 mm of discharge height, 4,500 mm of turning radius and 21% of gradeability, on a machine 2,700 x 1,600 x 2,000 overall. Those figures describe a vehicle that fits real construction routes on a water conservancy project.
How much ground clearance does a china front tipping dumper factory supplier have?
200 mm, which is deliberately modest because the machine is kept low. The FC10 is built for sites, yards and tracks on a water conservancy project rather than for rock. The swinging rear axle keeps the wheels down on uneven going.
Can a china front tipping dumper factory supplier work in a narrow space?
That is what it is for. At 2,700 x 1,600 x 2,000 overall with a 4,500 mm turning radius, it passes through openings and turns inside its own footprint, and forward tipping means it empties ahead of itself rather than needing clear space behind.
Is a china front tipping dumper factory supplier safe on a confined site?
The layout helps: 4,500 mm of turning radius means fewer blind reversing movements, and forward tipping at 390 mm means nobody has to stand behind a raised box. Keep inside the published 21% gradeability and 200 mm clearance limits.
A china front tipping dumper factory supplier is a simple machine kept useful by honest figures. Rated load, box volume, discharge height, turning radius and clearance are the five rows worth checking against your site before anything else is discussed.
Cold weather and winter care for China Front Tipping Dumper Factory Supplier: Range
Winter is hard on rubber and on seals as much as on the engine. Parking China Front Tipping Dumper Factory Supplier: Range under cover, keeping the tracks or tyres off standing water and checking the hoses for cracking are all part of the season.
Storage and long idle periods for China Front Tipping Dumper Factory Supplier: Range
Standing still is harder on a machine than working. Preparing China Front Tipping Dumper Factory Supplier: Range for a long idle period means clean fluids, a charged battery and protection for the exposed surfaces, because neglect is not the same as rest.
Reading the early symptoms on China Front Tipping Dumper Factory Supplier: Range
The symptom is usually not at the fault. A hydraulic function that has become sluggish on China Front Tipping Dumper Factory Supplier: Range may point to a filter, a relief setting or a pump, and starting with the simple checks avoids the wrong guess.
Contact MINGYI Machinery for the current front tipper range, the four-wheel-drive models above the FC10, and a formal specification for your market. E-mail: sales@mingycn.com | LINE (ID): mingyicn
