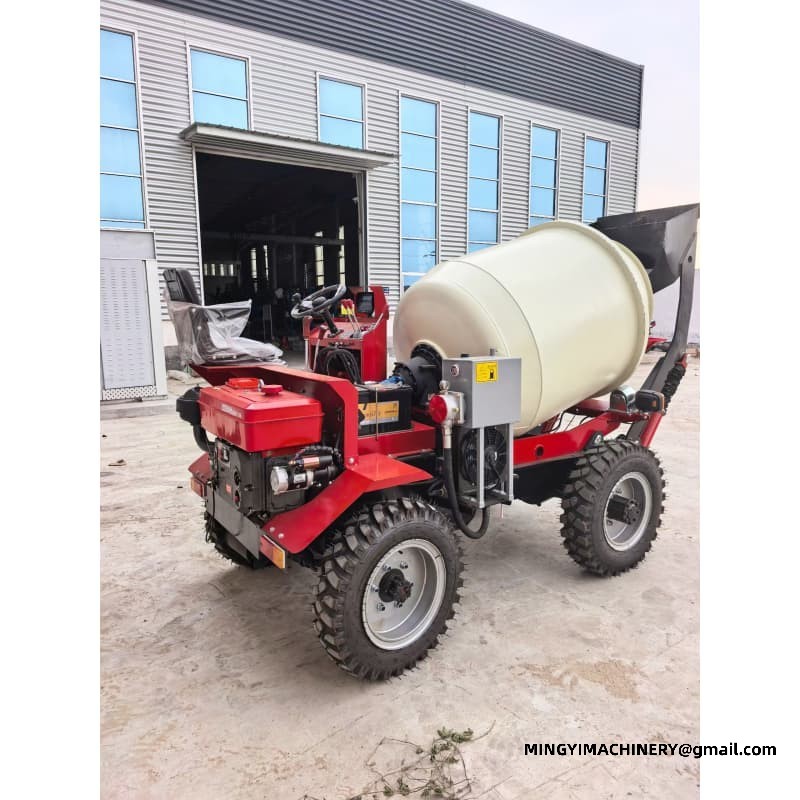

The published table on a self loading concrete mixer for sale is short, and every line on it is a decision. 0.8 m³ capacity, 1,500 kg rated load, 3,500 x 1,600 x 2,200 mm overall, 4WD through a 130 axle with a 212 steering axle behind. This page takes those lines one at a time and reads them the way a crew meets them: loading, mixing, hauling and discharging on canal work.
At 1,600 mm wide the machine threads standard double gates with room for its mirrors, which is the whole reason the envelope was drawn that way. Estate lanes, compound doors, orchard rows and basement entries all accept it where ordinary site trucks stop at the street.
Height bars and door heads deserve the same measurement as the width — the 2,200 mm envelope is honest, but site structures sag, and a taped height stick at the gateway settles the question in ten seconds.
Engine oil and fuel, air restriction, hydraulic level, drum cleanliness, tyres and wheel nuts, lights and mirrors. That walk-round takes five minutes and catches nearly everything that becomes lengthy when missed.
The drum wash-out belongs here too — it is listed in the drum section but it is a daily item, not a weekly one. A machine parked clean on canal work is a machine that starts the next morning without arguments.
A transit mixer delivers volume from a plant; this machine delivers independence from a plant. For large continuous pours the transit wins outright. For small pours beyond the plant's radius — on canal work placing lining concrete along the channel — the transit's minimum charges and queue time make it the dearer option.
Against a hand-fed drum mixer, the comparison is labour: the self-loader replaces the shovel line that feeds the small mixer, and it moves the batch to the pour under its own power. One operator does what a barrow chain of four or five does, with fewer batches lost to delay.
| Reference specification — 0.8 m³ 4WD self-loading concrete mixer | |
|---|---|
| Rated load | 1,500 kg |
| Rated capacity | 0.8 m³ |
| Overall dimensions (L x W x H) | 3,500 x 1,600 x 2,200 mm |
| Front tyre size | 8.25-16 |
| Rear tyre size | 7.50-16 |
| Minimum ground clearance | 204 mm |
| Steering angle | 28° |
| Turning dimension (outer tyre) | 2,464 mm |
| Maximum travel speed | 24 km/h |
| Transmission | 4WD |
| Gears | 3 forward / 1 reverse + travel gear |
| Front axle | 130 drive axle |
| Rear axle | 212 selectable 4WD steering axle |
| Engine | single-cylinder diesel / 25 hp |
| Steering | hydraulic power steering |

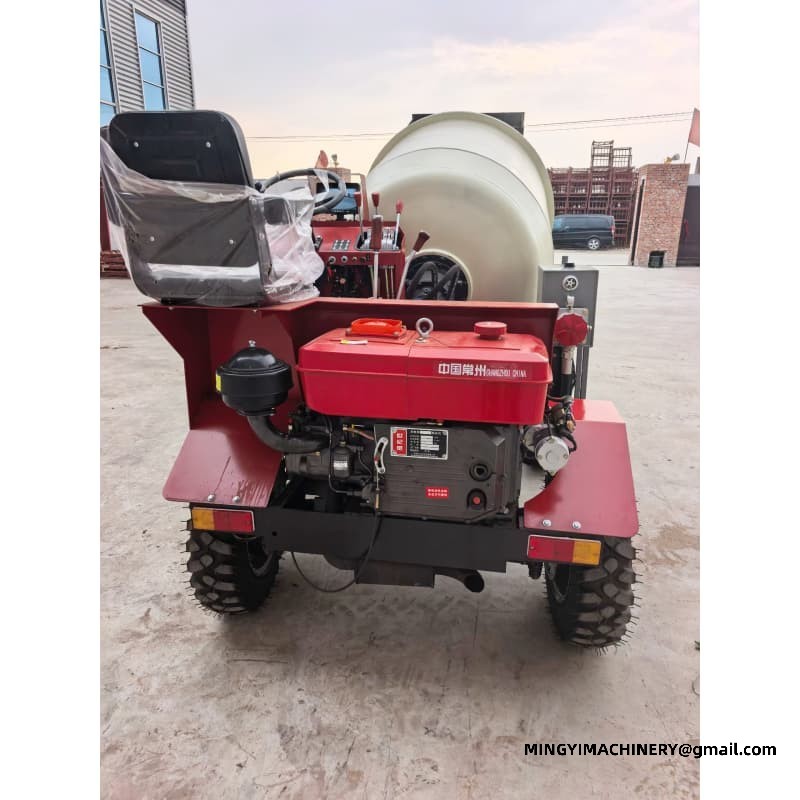

Power comes from a single-cylinder diesel rated at 25 hp. It drives the transmission, the drum and the hydraulics, and it does so with the mechanical directness that makes small site machines easy to keep alive: no electronics to fail, no dealership lock-out, one cylinder to know by heart.
Single-cylinder engines also teach their operators. The rhythm of a healthy 25 hp unit — exhaust note, vibration, smoke colour — tells an attentive operator more than a dashboard of warning lamps, and small deviations get fixed small.
Measure the machine in hours, not in days. A drum that cycles every few minutes earns more in a short shift than a machine that waits between batches, and the hour meter is the honest tally of both. The published speed and gears exist to keep the cycle tight, not to make the machine fast.
plan service against hours too. Oil, filters and greasing key off the meter, and a machine worked hard in a season reaches its first major check sooner than a machine worked occasionally. The meter tells the truth either way.
Wet concrete moves. Cornering hard, braking sharply or crossing a slope swings 0.8 m³ of liquid load to one side, and the machine's stability depends on the operator not inviting that. The low drum mount and the wide stance help; the operator's right foot finishes the job.
On canal work, where paths cross the machine's working circle, the operator stops loading until the path is clear. The five seconds of waiting are simpler than every alternative, and the habit takes nothing by the end of a week.
Heat shortens everything: the workability window, the wait between batches, the time a finisher has. In hot seasons the drum works slightly smaller batches, water is measured colder and exactly, and aggregate stockpiles are kept shaded where possible so the mix does not start hot.
The machine itself copes well — the single-cylinder diesel is air-cooled territory and dust, not heat, is its enemy. Filter checks are the hot-season habit that matters on canal work.
The machine-specific parts — drum blades, shovel pins, hydraulic seals — travel by shipment from the supplier, and the engine and axle patterns travel by the nearest agricultural network. Between them, little that breaks on this machine needs a wait measured in weeks.
A supplier worth keeping answers the cycle question — 0.8 m³ per batch, travel time, placing rate — rather than quoting a discount. The relationship that outlasts the warranty is the one built on specification and parts, not on specification alone.
The drum is recipe-agnostic: lean foundation mixes, richer masonry mixes, and paving batches all turn the same way and discharge the same way. The machine's contribution is uniformity, not chemistry — the recipe is the engineer's, the repetition is the drum's.
Wet seasons ask for drier batches and firmer ground; dry seasons ask for the opposite, plus shaded stockpiles so the mix does not start hot. The machine adapts through its recipe and its route, and neither asks anything of the drum but consistent turning.
The front tyres are 8.25-16 and carry the drive under a full drum; the rears are 7.50-16 and steer. The heavier front fitment matches the heavier front duty — drive torque plus a loaded drum sitting between the axles.
Keep the pairs matched left to right and the pressures even, because uneven fronts put the machine slightly out of square and the steering fights it all day. Tyres are the simplest component to treat well and the most lengthy to ignore.

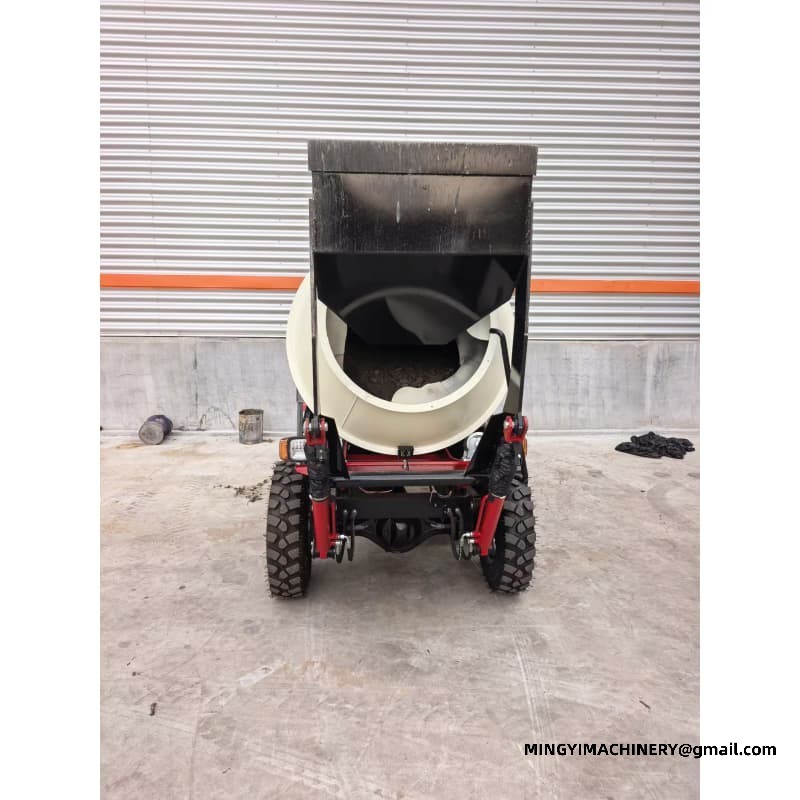

Self-loading is the whole idea. A front shovel scoops aggregate and sand from a stockpile, lifts it over the drum, and releases it — no separate loader, no second machine, no third pair of hands. One operator runs the entire chain from pile to pour.
The shovel's geometry deserves a sentence of its own: it loads from in front of the drum, so the machine stands facing its stockpile and drives away facing the pour. No reversing into position, no second alignment, and the whole cycle on canal work keeps one direction of travel.
204 mm of clearance under the axles is the machine's ground rule. It clears ruts, rubble and standing water of that depth, and it does not clear more. The low build is what keeps the centre of gravity down under a raised drum, so the number is a design trade, not a deficiency.
204 mm also sets the maintenance floor: axle drain plugs, the gearbox sump and the hydraulic filter all live above that line, and none of them wants to meet a rock. The clearance is a working figure, not a styling choice.
3,500 x 1,600 x 2,200 mm is the whole machine: short enough for a site trailer, narrow enough for a garden gate, low enough for a container without a top-loader's paperwork. Every one of those three numbers earns its place somewhere on canal work.
At 3,500 x 1,600 x 2,200 mm, the machine loads onto a tag trailer behind a light truck or ships one per small container. For plant hire fleets and export buyers that footprint is money: no escort, no low-loader, no special port handling.
A specification is a contract before it is a sales document, and this one is short enough to read in a minute. The first cluster — 0.8 m³ capacity, 1,500 kg rated load, the 3,500 x 1,600 x 2,200 mm envelope — describes what a batch is and where the machine can stand. The second — 4WD, the 130 and 212 axles, 204 mm clearance — describes whether it can reach the pour.
The engine line — single-cylinder diesel, 25 hp — is a maintainability statement more than a performance one. Single-cylinder diesel of this pattern is serviced anywhere, started by a mechanic who has seen one before, and rebuilt on a bench. A higher number would not help a machine that works where dealerships are days away.
Can the self loading concrete mixer for sale be shipped knocked down?
Ask at specification — packing format is a commercial option, and the answer depends on your market's import rules and your assembly capability. Confirm what is stated before the deposit.
Can the self loading concrete mixer for sale carry aggregate without mixing?
Yes, within the 1,500 kg payload — moving sand and gravel between stockpile and mixer is a common secondary use, discharged by tipping the drum.
What engine does the self loading concrete mixer for sale use?
A single-cylinder diesel rated at 25 hp. It drives the transmission, drum and hydraulics, and it services with filters and oil a general mechanic already stocks.
What is the delivery time for a self loading concrete mixer for sale?
It varies with build schedule and sailing dates, so confirm current lead time when you request the specification — the same message that fixes the specification fixes the date.
How much does a self loading concrete mixer for sale effort?
Specification depends on market, options and freight, so it is stated rather than published. E-mail sales@mingycn.com or LINE (ID): mingyicnfor a formal specification for your port.
Is the self loading concrete mixer for sale stable on slopes?
Within site-ramp grades, driven slowly and straight. Cross-slopes with a full drum deserve a straighter line than empty running, and no turning across a loaded slope.
How long does it take to train a self loading concrete mixer for sale operator?
A careful new operator works productively within a day. The controls are few; the judgement worth training is slopes, loads and the wash-out habit.
Will the self loading concrete mixer for sale fit through a garden gate?
At 1,600 mm wide it passes standard double gates with room for mirrors. Measure the narrowest point and the turn immediately inside it before delivery.
Small pours, distant sites and awkward access are exactly where this machine was drawn to work. Where the job matches that shape, the published table is all the sales argument needed.
Planning the season around Self Loading Concrete Mixer for Sale: Reading the Spec
Downtime is simplest when it is planned. Booking the service for Self Loading Concrete Mixer for Sale: Reading the Spec in the quiet part of the season takes nothing from the schedule, while the same work in the busy weeks gives up a day of output every time.
Later additions and retrofits on Self Loading Concrete Mixer for Sale: Reading the Spec
An added function should pay for itself quickly. Whether Self Loading Concrete Mixer for Sale: Reading the Spec gains a different bucket, a hydraulic service or a protection package, the test is the number of days a year it is actually used.
Cold weather and winter care for Self Loading Concrete Mixer for Sale: Reading the Spec
A cold start is easier when the machine is prepared the night before. The routine that keeps Self Loading Concrete Mixer for Sale: Reading the Spec working through winter is mostly a matter of fuel, battery and patience in the first ten minutes of the day.
Fuel, oil and fluid quality for Self Loading Concrete Mixer for Sale: Reading the Spec
Contamination is easier to prevent than to cure. Keeping the filler caps sealed, the funnels clean and the containers closed around Self Loading Concrete Mixer for Sale: Reading the Spec is unglamorous work that shows up as reliability later.
Contact MINGYI Machinery for the current self-loading concrete mixer specification, export packing and a formal specification for your market. E-mail: sales@mingycn.com | LINE (ID): mingyicn
