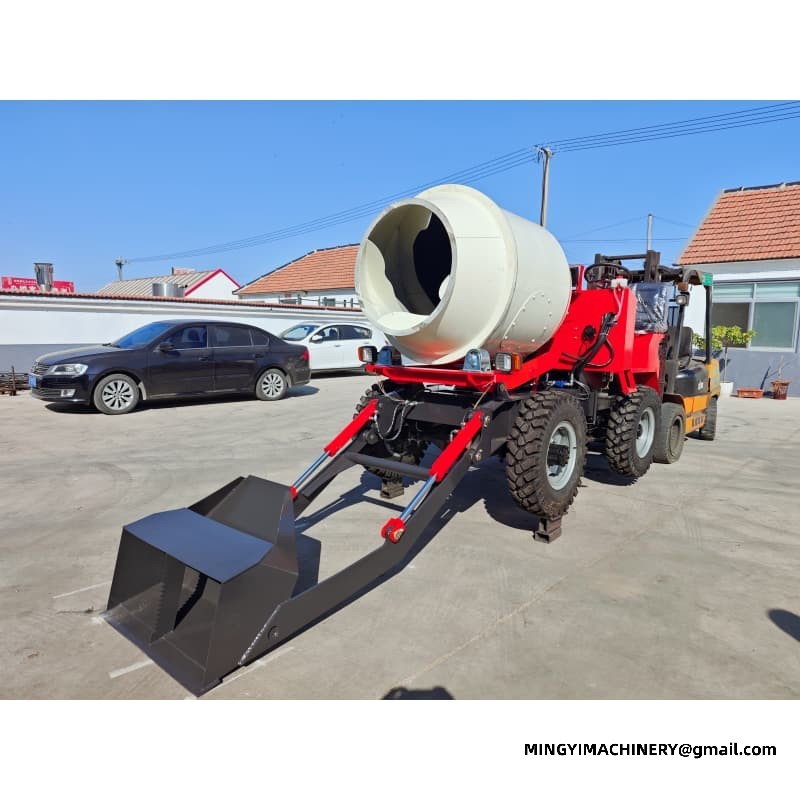

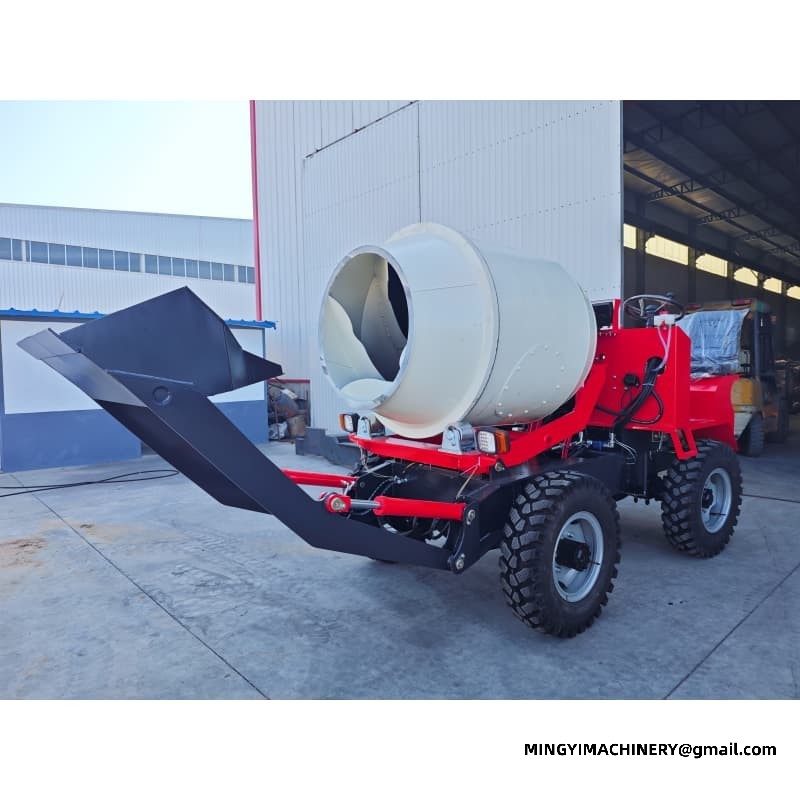

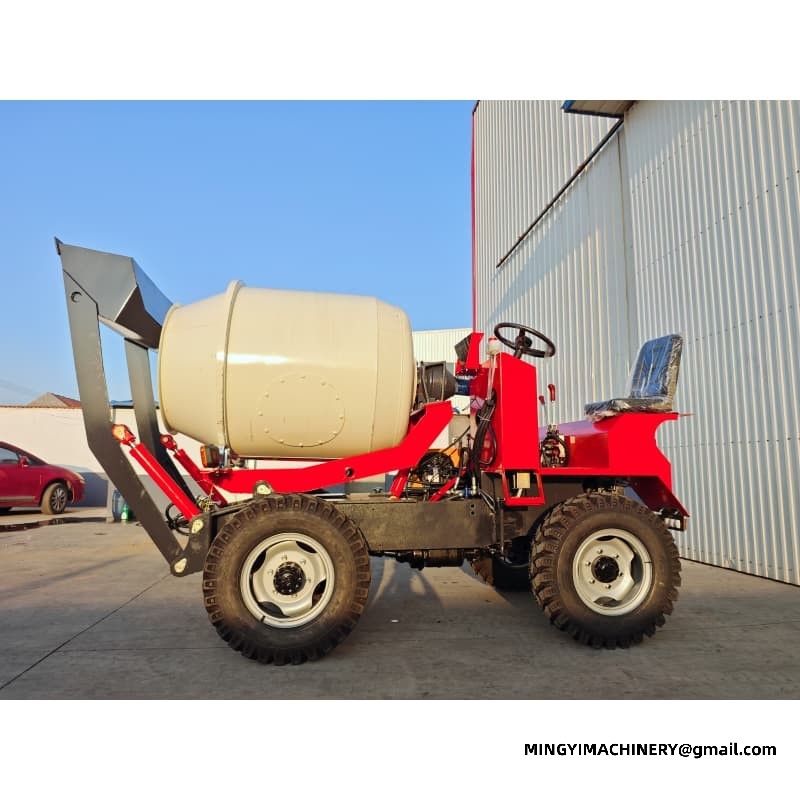

All-in-One Mobile Cement Mixer, Multi-Functional Site Loader, Utility Truck
Every figure on the all in one mobile cement mixer table earns its keep somewhere specific. The 0.8 m³ drum matters at the formwork; the 8.25-16 tyres matter halfway across a wet site; the 25 hp single-cylinder diesel matters at the fuel bowser and at the mechanic who knows it by heart. This page connects each published number to the moment on a building site a crew actually feels it.
Measure the narrow gate before delivery on a building site — width, height bar, and the turn immediately inside it. The 2,464 mm turning circle handles the inside turn; the measurement turns hope into a plan.
At 2,200 mm high the machine works under low slabs, through basement ramps and inside tunnel inshots where a transit mixer's height alone disqualifies it. The drum does not add to the envelope, which is what makes the machine usable underground at all.
The machine sits squarely in that second case. Small, repeated pours, distant supply, awkward access — work where a transit mixer either refuses the job or charges for the wasted capacity of a part-load.
The wash-out discipline from the drum section doubles as an effort control: washed aggregate and water are simple, hardened drum heels and wasted returns are not. Batching to demand is the quiet economic argument for the whole machine class.
Ask for photographs of the actual unit and its serial plate, not brochure images. The machine is simple enough that a five-minute video call at handover — controls, drum, shovel, axles — answers more than a week of messages.
Buying the kit with the machine also proves the supply chain before it is needed. Ask the supplier to specification parts by the same reference numbers as the manual, so the second order places itself.
| Published build data — 0.8 m³ 4WD self-loading concrete mixer | |
|---|---|
| Rated load | 1,500 kg |
| Rated capacity | 0.8 m³ |
| Overall dimensions (L x W x H) | 3,500 x 1,600 x 2,200 mm |
| Front tyre size | 8.25-16 |
| Rear tyre size | 7.50-16 |
| Minimum ground clearance | 204 mm |
| Steering angle | 28° |
| Turning dimension (outer tyre) | 2,464 mm |
| Maximum travel speed | 24 km/h |
| Transmission | 4WD |
| Gears | 3 forward / 1 reverse + travel gear |
| Front axle | 130 drive axle |
| Rear axle | 212 selectable 4WD steering axle |
| Engine | single-cylinder diesel / 25 hp |
| Steering | hydraulic power steering |
Because rotation and tilt are hydraulic, the operator can hold a partial discharge — trickle into a barrow, stop, move, resume — which no hand-cranked drum offers. That control is worth as much as the 0.8 m³ itself on pours with fussy geometry.
Consistency comes from a fixed recipe and a fixed routine: the same bucket counts, the same water measure, the same mixing time. Because the shovel weighs each scoop the same way and the drum turns each batch the same way, the machine rewards crews that work to a recipe with batches that finish identically.
plan service against hours too. Oil, filters and greasing key off the meter, and a machine worked hard in a season reaches its first major check sooner than a machine worked occasionally. The meter tells the truth either way.
The 4WD chassis and the simple engine both tolerate steady work better than they tolerate abuse, and the crews who respect the cycle get a machine that reaches its resale value intact.
The machines that age well are washed and greased on schedule; the machines that age badly are the ones where wash-out slipped and dust won. Nothing exotic — just the daily five minutes, kept.
Resale in most markets is quick for this class — demand from small contractors keeps specifications firm. Keeping the service book on a building site is worth more at resale than any polish.
Seat position is part of the safety case: the open station puts the operator's eyes at drum height, with the shovel arc and the discharge point both in view. Machines that hide their own working parts invite the guesses that cause injuries.
On a building site, where paths cross the machine's working circle, the operator stops loading until the path is clear. The five seconds of waiting are simpler than every alternative, and the habit takes nothing by the end of a week.
The arithmetic is simple enough for a whiteboard — batches per bay, cycles per hour, and the standing spot for each. Ten minutes of planning on a building site buys a full day of continuous placement.
Wind deserves a mention in the schedule too: it stiffens exposed surfaces and steals workability on the run. Batching slightly wetter within the design, placing tighter to the drum, and covering between loads keep the pour honest on exposed sites.
A supplier worth keeping answers the cycle question — 0.8 m³ per batch, travel time, placing rate — rather than quoting a discount. The relationship that outlasts the warranty is the one built on specification and parts, not on specification alone.
Commission the machine properly and write it down. The checklist protects the warranty and gives the next operator a known starting point, and the habit takes nothing the moment it begins.
Power steering also matters at the end of a shift. A loaded machine manoeuvring all day on a manual system tires the operator into mistakes; the hydraulic system keeps the last batch as controlled as the first.
Every machine has edges, and pretending otherwise sells it badly. The 2,464 mm circle does not fit a footpath squeeze half its width; the 204 mm clearance does not ride over boulders; the drum does not deliver up a ladder. The honest answer to those jobs is barrows, pumps or a bigger machine.
Fix the mix design for mortar and screed batches once, write it down, measure the water, count the scoops, time the drum — and the batches on a building site will be more consistent than most hand-mixed concrete has ever been.
Where workability genuinely must rise, change the mix design rather than the habit — plasticisers exist for exactly this reason, and a measured dose beats an unmeasured splash every time on a building site.

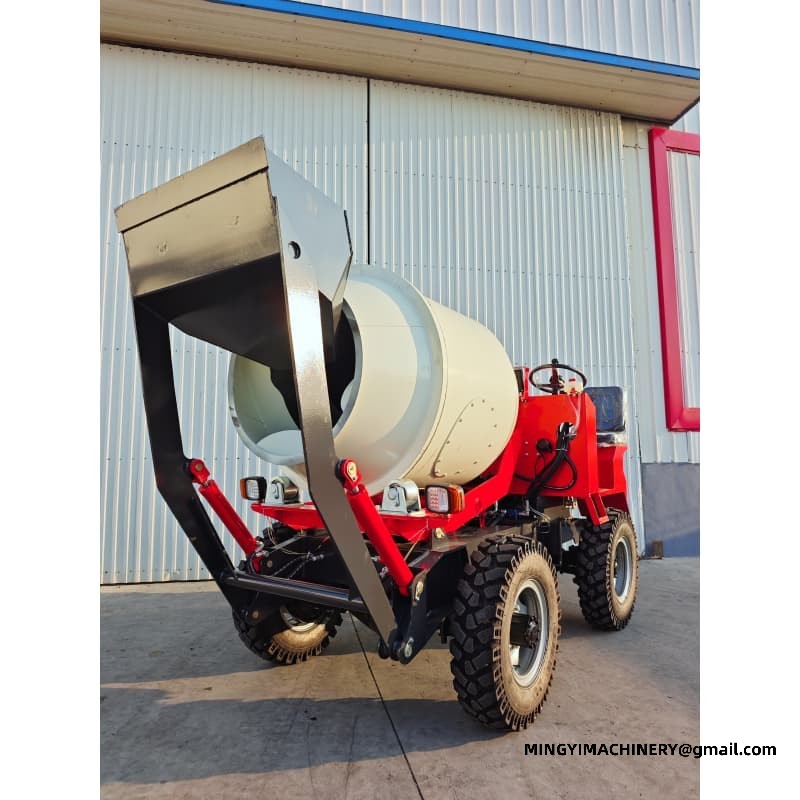

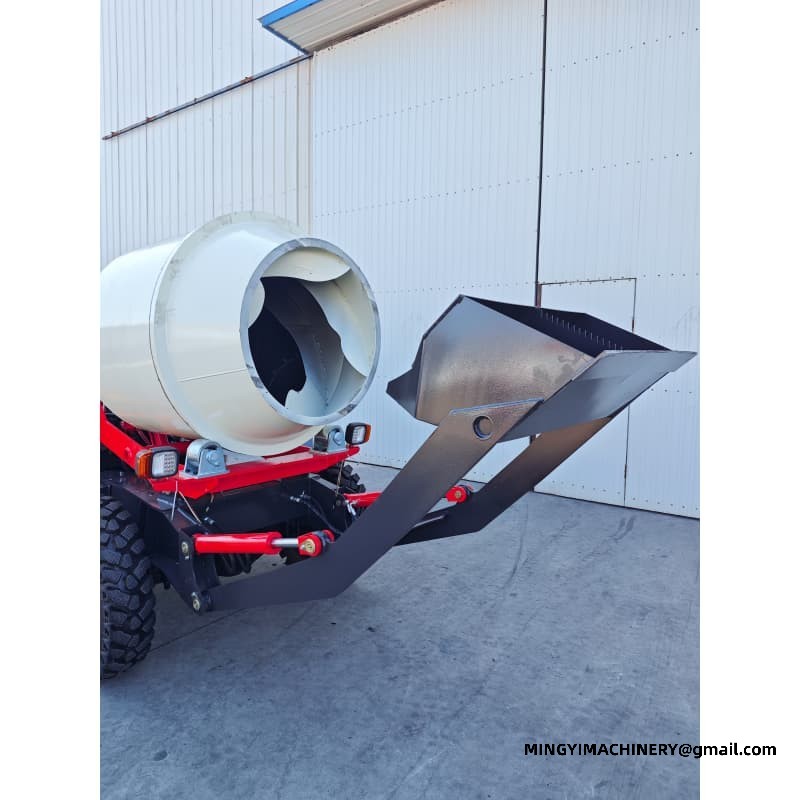

The shovel's geometry deserves a sentence of its own: it loads from in front of the drum, so the machine stands facing its stockpile and drives away facing the pour. No reversing into position, no second alignment, and the whole cycle on a building site keeps one direction of travel.

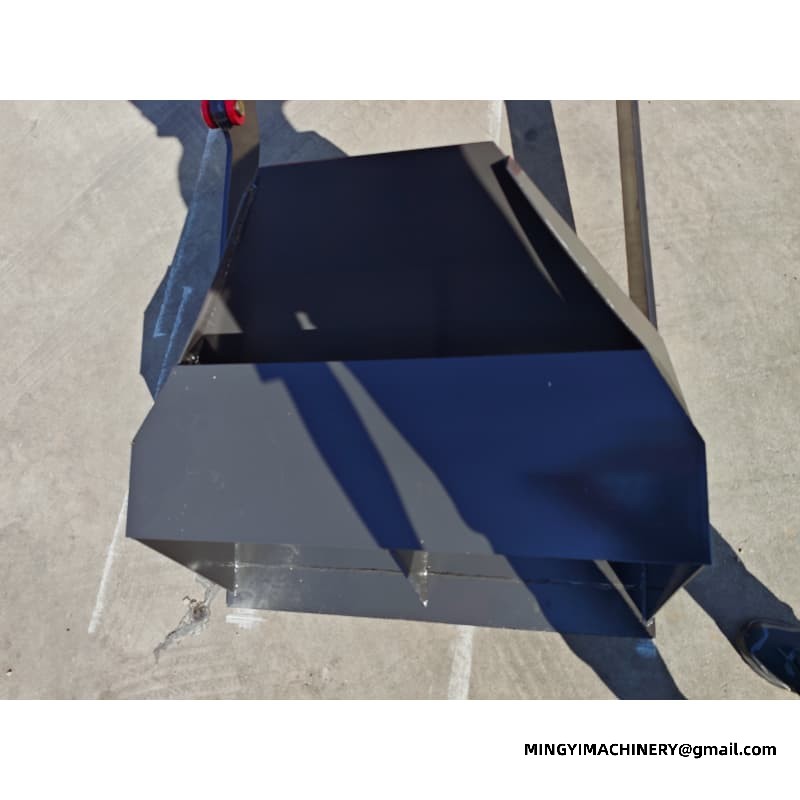

The shovel is sized for this class of machine. It handles sand, gravel and coarse aggregate freely, and it will lift bagged cement if the crew breaks bags in first. It is not a demolition tool, and forcing it into compacted or oversized material shortens a working day quickly.
The machine itself copes well — the single-cylinder diesel is air-cooled territory and dust, not heat, is its enemy. Filter checks are the hot-season habit that matters on a building site.
The wet-season spares list grows by two items: extra air filters and a can of water dispersant for the electrics. Machines that work monsoons year after year on a building site are machines whose crews plan for it.
On a building site, the difference shows on the first wet morning. A two-wheel-drive machine spins and needs towing; this one keeps moving under its own traction with a full 1,500 kg in the drum circuit. Traction is capacity — a mixer that cannot reach the pour has none.
Both axle patterns are agricultural standards, which matters more than any performance figure: seals, bearings and crown wheels for the 130 and 212 patterns are stocked wherever farm machinery is sold, and that is everywhere this machine works.
The gear pattern also gives the machine its manners: low gears hold back a loaded drum on descents without riding the brakes, and the travel gear keeps engine speed economical on road sections. Good gearing is invisible until it is missing.
Shift on the move only between close ratios; come to rest for anything involving the travel gear. The gearbox is simple and strong, and the abuse that kills gearboxes — ramming selectors under load — is entirely avoidable on a building site.
How do I get a specification for the all in one mobile cement mixer?
E-mail sales@mingycn.com or add LINE (ID): mingyicn with your market and intended work; the reply covers the specification, optional items and freight to your port.
Does the all in one mobile cement mixer have a cab or canopy?
The machine is an open station by design — short, low and simple. Confirm with the supplier what weather protection options exist for your market before ordering.
Can the all in one mobile cement mixer do canal lining work?
Yes. It runs along the towpath inside a 2,464 mm turning circle, batching lining concrete as it goes from section to section.
Who supports the all in one mobile cement mixer after delivery?
The supplier, by shipment of machine-specific parts and by guidance on the engine and axle pattern any local mechanic can service. E-mail sales@mingycn.com or LINE (ID): mingyicn and the conversation continues after the sale.
What is the delivery time for a all in one mobile cement mixer?
It varies with build schedule and sailing dates, so confirm current lead time when you request the specification — the same message that fixes the specification fixes the date.
What servicing does the all in one mobile cement mixer need?
A five-minute daily walk-round — oil, fuel, air, hydraulics, tyres, drum — plus weekly greasing of shovel pins and steering linkage, and oil changes by the hour meter.
Is 24 km/h fast enough for a all in one mobile cement mixer?
For the job, yes — the machine carries wet concrete high on a short wheelbase, and the gearing keeps those loads sedate. Road moves between sites use the travel gear.
Where should all in one mobile cement mixer wash-out water go?
Into a designated wash-out pit or settling area, never into drains or against the stockpile. Cement-laden water is a controlled waste on most sites.
The figures above answer the questions buyers ask most; the daily habits answer the rest. Between them, they describe a machine that is deliberately simple and deliberately durable.
Planning the season around All-in-One Mobile Cement Mixer: Load, Mix, Carry, Discharge
Downtime is simplest when it is planned. Booking the service for All-in-One Mobile Cement Mixer: Load, Mix, Carry, Discharge in the quiet part of the season takes nothing from the schedule, while the same work in the busy weeks gives up a day of output every time.
Later additions and retrofits on All-in-One Mobile Cement Mixer: Load, Mix, Carry, Discharge
Most additions are easier to plan than to add. Hydraulic services, mounting brackets and electrical capacity on All-in-One Mobile Cement Mixer: Load, Mix, Carry, Discharge are build items, and deciding them at the specification stage is far easier than doing it later.
Handover and getting familiar with All-in-One Mobile Cement Mixer: Load, Mix, Carry, Discharge
A good handover covers the awkward cases, not just the easy ones. Starting All-in-One Mobile Cement Mixer: Load, Mix, Carry, Discharge on a slope, turning in a confined space and recovering from soft ground are the situations an operator should meet first with someone beside them.
Commissioning All-in-One Mobile Cement Mixer: Load, Mix, Carry, Discharge on site
Commissioning is where the specification meets the ground. The settings chosen for All-in-One Mobile Cement Mixer: Load, Mix, Carry, Discharge are confirmed against the actual site, and the working pattern is adjusted before the machine is asked for a full day.
Cold weather and winter care for All-in-One Mobile Cement Mixer: Load, Mix, Carry, Discharge
Starting is only the first problem. Until All-in-One Mobile Cement Mixer: Load, Mix, Carry, Discharge reaches working temperature the hydraulic response is slower and the seals are stiffer, and warming the machine before asking for full output avoids unnecessary strain.
Contact MINGYI Machinery for the current self-loading concrete mixer specification, export packing and a formal specification for your market. E-mail: sales@mingycn.com | LINE (ID): mingyicn
